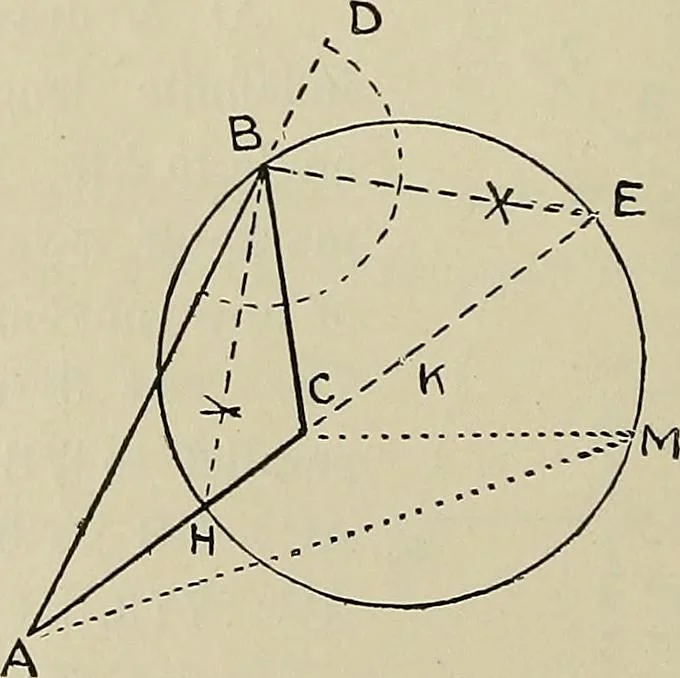

Fis. 192. Problem 120.TJiis iirohlem ilhistrates an important principle in proportion.Take a triangle ABC, the sides of which shall bear a certain … Fig. 193. ratio. For exam-pie, let AB : BC as 2 :1. Produce AB to D, andbisect the angles ABC and DBC by lines meeting AC pro-duced in H and E. Bisect the line HE in K (Prob. 1). WithK as centre, and KE as radius, draw the circle EBH. Now, ifwe take any point M in this circle, and join MA and MC,…
