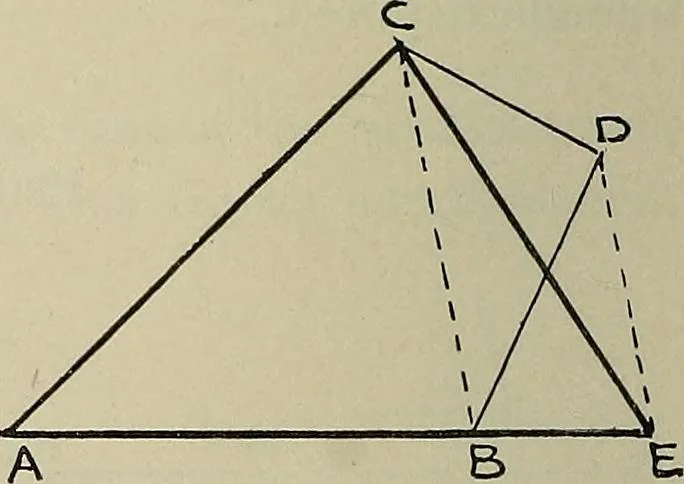

s and equal altitudes,they must all be equal in area toeach other. Problem 127. To transform a given trapezium ABDC into anequivalent triangle. Join BC. From D draw the line DE parallel to CB till itmeets AB produced in E (Prob.4). Join CE. Then ACE willbe the triangle required. We have simply… … Fig. 205. Problem 128. To convert a given regular pentagon ABEDC into a trapezium, orto construct an isosceles triangle of an area equal to that ofa given pentagon. Join A and B to D. From point E draw the line EH EQUIVALENT AREAS 93 parallel to DB till it meetsAB produced in H (Prob. 4).Join DH.…
