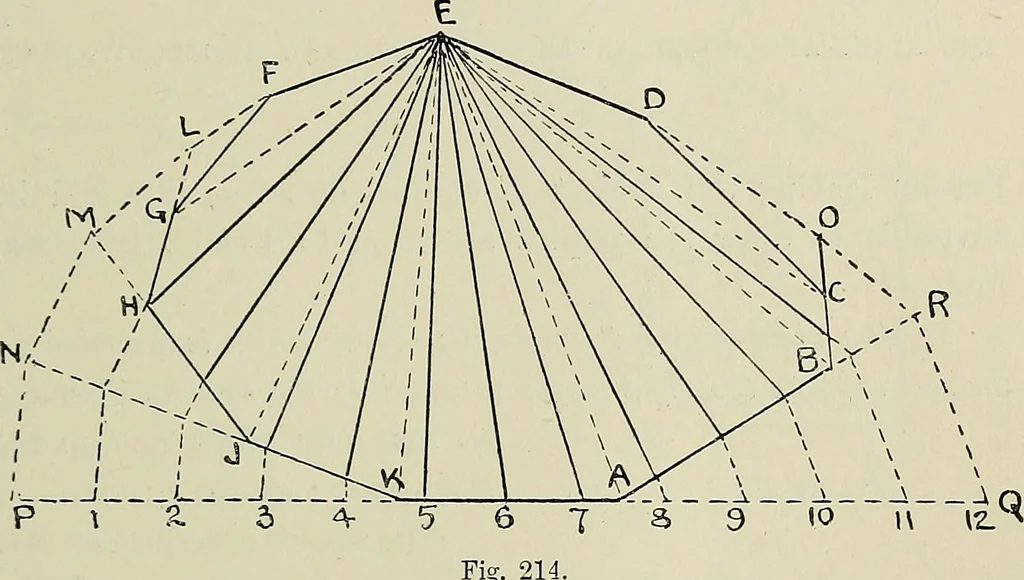

ne angle E. Join each angle to E. From E draw the line EL parallel toEG till it meets HG produced in L (Prob. 4). Erom L draw EQUIVALENT AREAS 97 the line LM parallel to EH till it meets JH produced in M.From M draw the line MN parallel to EJ till it meets KJ pro-duced in IST. From N draw the line… … 1 draw a line parallel to PN till it meets KIST, then parallel toI^M till it meets the given polygon, then draw it to E; thespace cut off from the polygon by this line represents one of thetwelve divisions required. From point 2 draw a line parallelto PN, then parallel to NM till it meets the…
