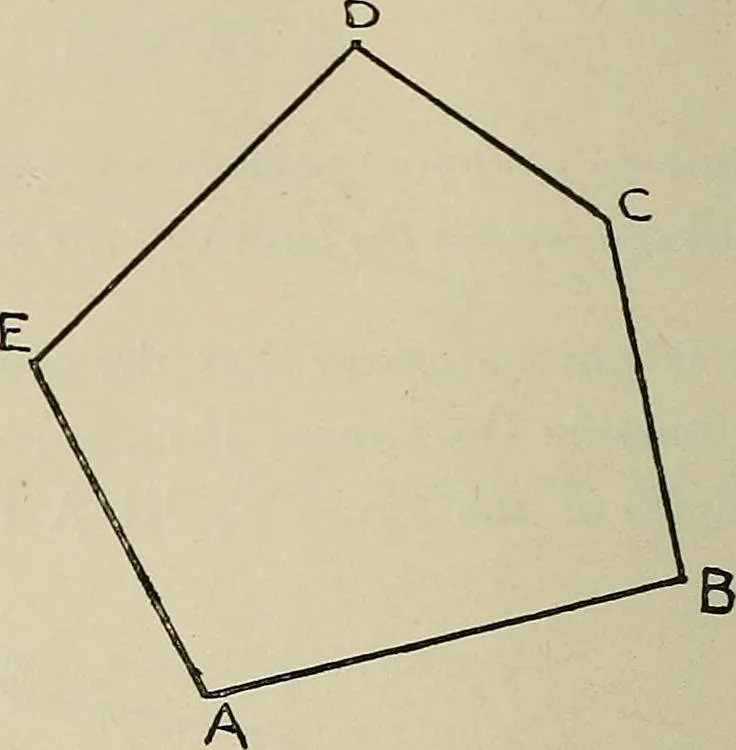

Fig. 279. half its length (Prob, 4). From G- draw GH parallel to BCand half its length. Proceed in the same way with theremaining sides, which will give the points K and L. JoinHK, KL, and LF, which will give the pentagon required. Peoblem 177. To draw a curve or pattern similar to a given…
