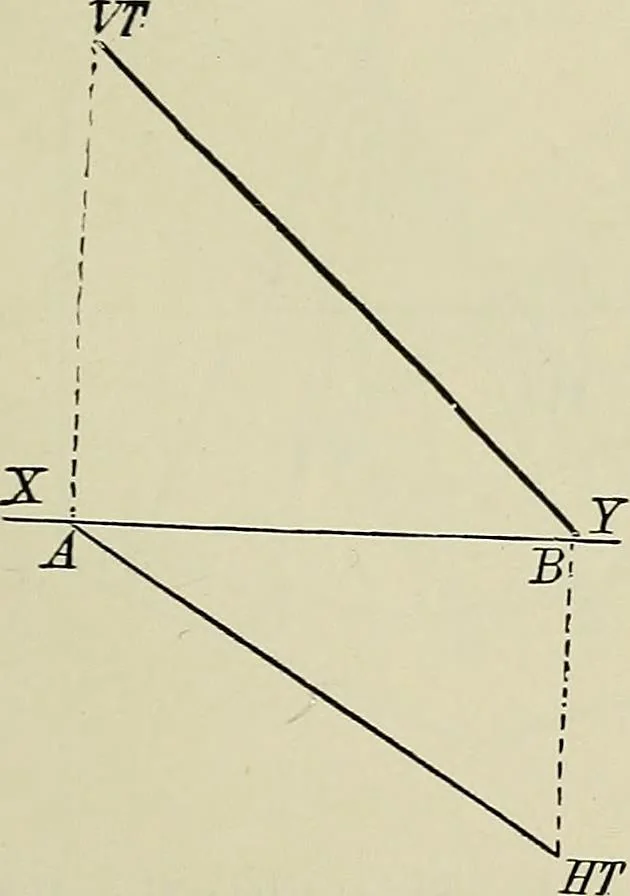

n F, draw a perpendiculartill it meets the line produced from cd. This gives the H.T.This trace is on the H.P., in front of the V.P. ORTHOGRAPHIC PROJECTION 287 Pkoblem 70.To find the projections of a line, its traces heing given. Fig. 90. Let H.T. and Y.T. be the traces. Let fall a…
