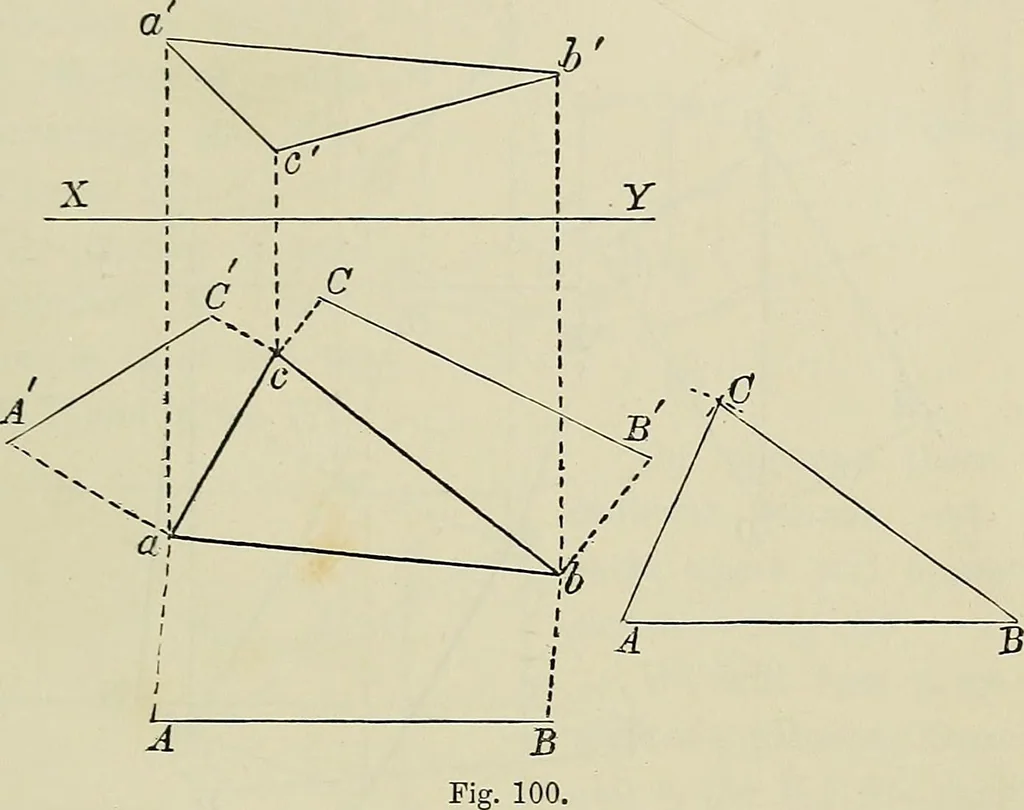

the angle at C is the true anglerequired. Peoblem 78. The plan abc of a triangle being given,—a being 5, b 4, and c 2above the H.P.,—to find its elevation, 6 of each side, and trueshape. Scale ^ full size. Fig. 100. Draw XY at any convenient distance above the plan, anddraw projectors from the… … to the heights of a and V above XY. AB represents the truelength of ctb, and their inclination to each other is B. Proceed in the same manner with the other two sides.Havino- obtained the true lengths of each side, construct thetriangle ABC with them. This gives the true shape of thetriangle…
