Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 322

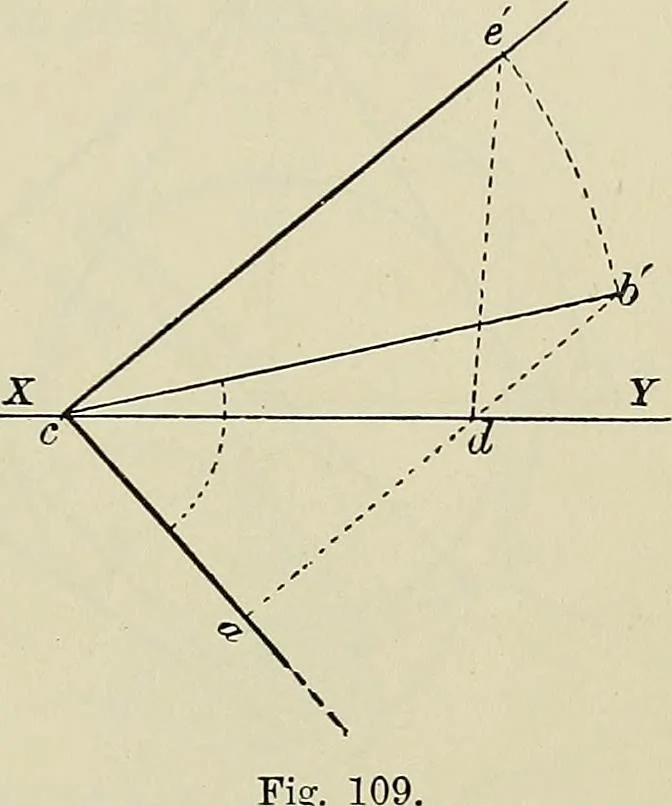

PllOBLEM 82. To find the true angle hetween the H.T. and Y.T. of a given plane(e.g. the angle Vca in the -plane A. Fig. 107.) Fig. 109. Let ac and ee be the H.T. and Y.T. From any point a in the H.T. draw ad in the H.P. per-pendicular to it till it meets XY in d. From this point drawa perpendicular…
