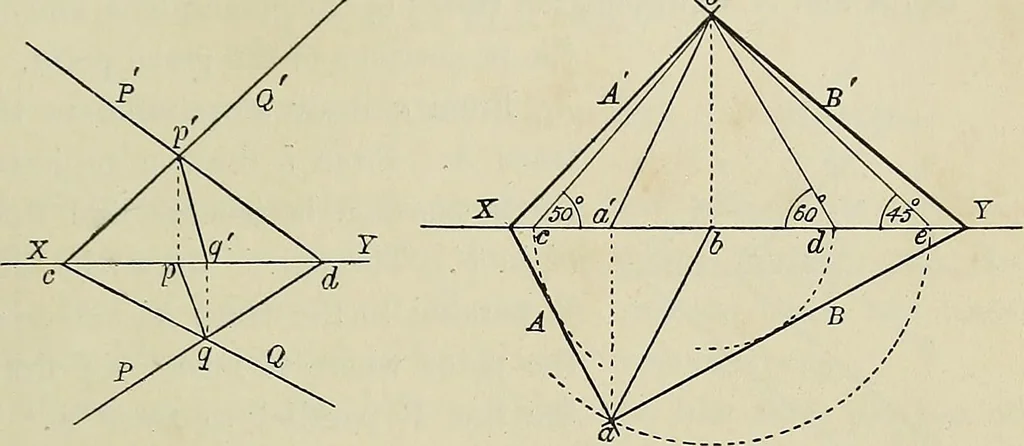

XXIV INTERSECTION OF PLANES 311 Fromg, where the H. traces intersect, draw the projector qq;and from p, where the V. traces intersect, draw the projector ^p.Zompq, and^2, Then jjg is the horizontal, and^2 the verticalprojections of the intersection required. … Fig. 122. Fig. 123. Problem 93. To determine the traces of t%vo planes A and B, loitli their line ofintersection: A to he inclined 50°, B at 60°, and the linein which they intersect 45° to the H.P.; all three inclinationsto he toioards the V.P. Pig. 123. Draw XY, and the perpendicular hV to…
