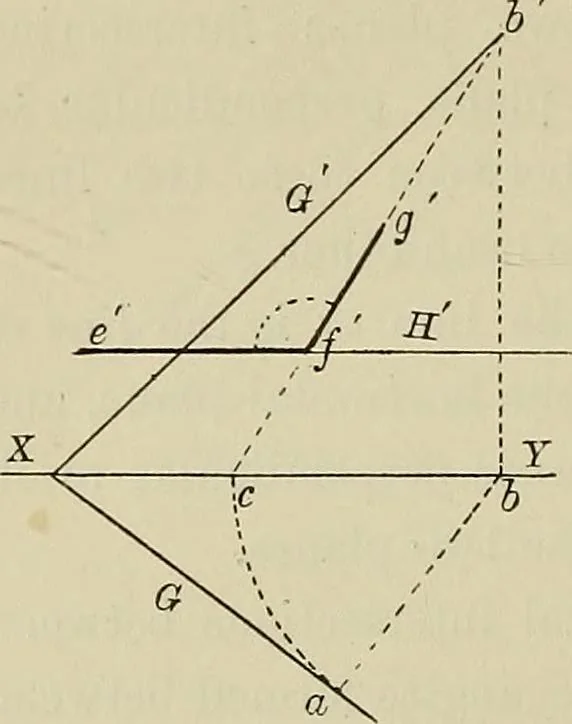

and a plane H parallel to the H.P., theirtraces being given. Fig. 125. Let G and G represent the traces of the plane G, and theline H the V.T. of plane H. 314 SOLID GEOMETRY From any point a draw aJ-) perpendicular to line G. With5 as centre, and radius ha, draw the arc ac. From & draw…
