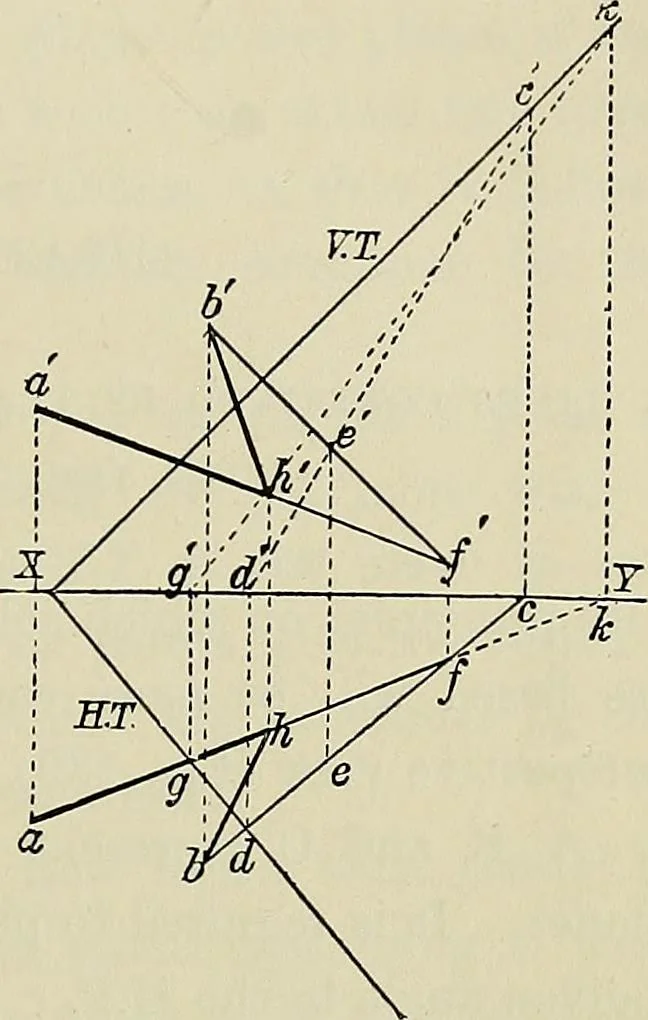

rface of the mirror.From / draw a projector till itmeets he in /. Join af, and produceit till it meets XY in k, cuttingthe H.T. in g. Draw the projec-tors gg and hk. Join gk. Drawa line from a to / intersecting gkin h. Draw a projector from h tillit meets ak in h. The points h andh are the… … Fig. 138. CHAPTEE XXVII LINES CONTAINED BY PLANES AND MAKING GIVEN ANGLESWITH THE CO-ORDINATE PLANES The principles on which solutions of this combination of figuresare based will be more easily understood by reference to theperspective view (Fig. 139). A, B, and C represent planes inclined to both…
