Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 357

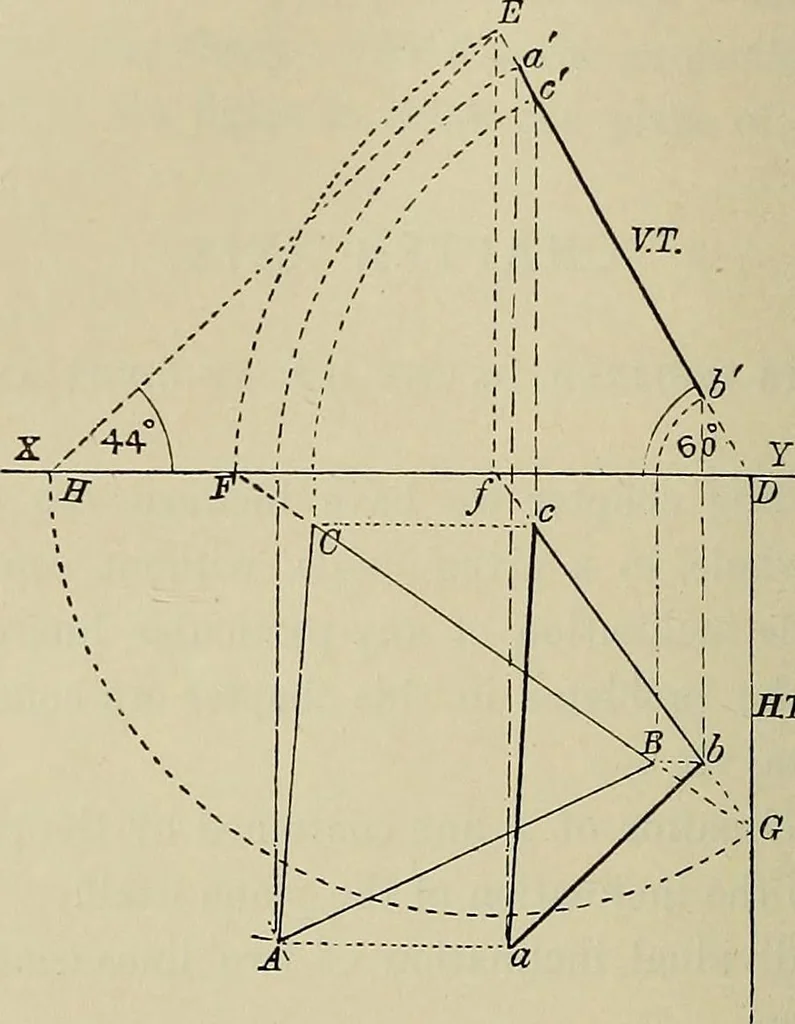

roduce it till it meets the V.T. in E. Prom E draw E/ perpen-dicular to XY. With / as centre, and radius /H, draw an arctill it meets the H.T. in Gr. With D as centre, and radius DE,draw an arc till it meets XY in P. Join PG- and /G. fG isthe projection of a line inclined at an angle of 44° with… … KT Fig. 151. convenient point C on FGr set off CB 1| long, and completethe equilateral triangle ABC. From each corner of the triangle draw perpendiculars tillthey meet XY. With D as centre, and these points as distances,draw arcs till they meet the A^.T. in the points a, c, and h.Draw projectors…
Geometrical drawing
