Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 464

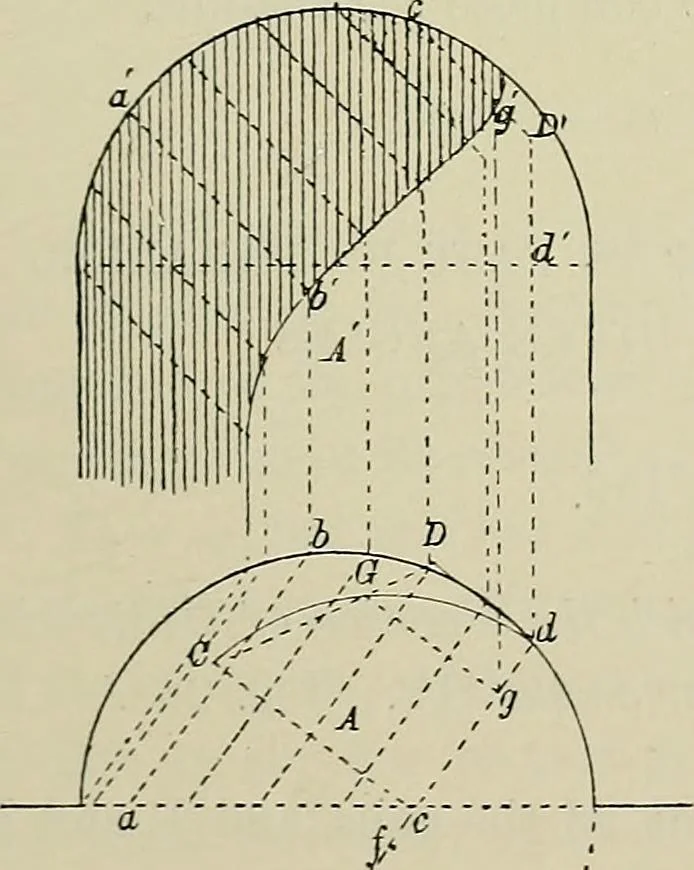

Fi^. 247. Peoblem 198. To project the shadov) cast on theinterior of a semicircidar re-cess. Fig. 247. Let A be the plan, and A theelevation. Take any number of pointsin the arch over the recess, asa, c, etc., and find the corre-sponding points in the plan, asa, c, etc. Draw the line ah withthe 6…
Geometrical drawing
