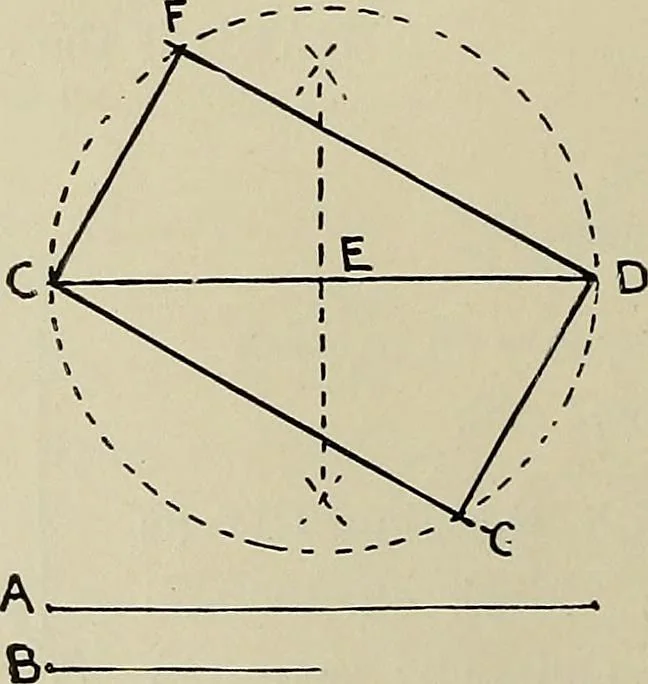

B^ Fig. 63. and radius equal to line B, and with F as centre and radiusequal to line A, draw arcs intersecting each other at E; joinEC and EF, which will give the rectangle required. Peoblem 29. To construct a rectangle with diagonal equal to given lineA, and one side equal to given line B. Draw… … Fig. 64. With E as centre, and with radius EC, draw a circle; from C CONVERGENT LINES ; CIRCLES AND ARCS 27 and D as centres, and with given line B as radius, set off thepoints r and G; join CG, GD, DF, and FC.CGDF is the required rectangle. Problem 30. To construct a rliomhus luith sides equal to…
