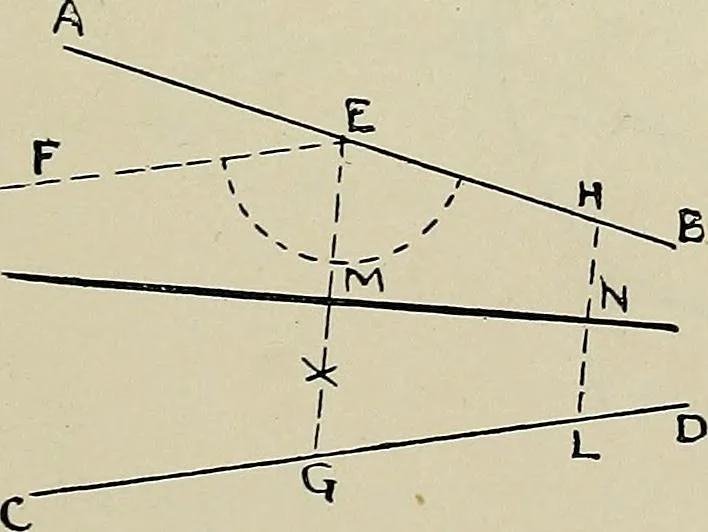

Fig. 65. CONVERGENT LINES ; CIRCLES AND ARCS. Peoblem 31. To drav:i a line bisecting the angle hettvee?i two given con-verging lines AB and CD, when the angular point isinaccessible. From any point E in AB,draw a line EF parallel to CD.Bisect the angle BEF by theline EG. At any point H be-tween E… … Fiff. 66. 28 TRACTICAL PLANE GEOMETRY chap. Pkoblem 32. Through the given jJoint A, to draw a line which vxndd, ifproduced, meet at the same point as the given lines BC andDE jjrodnced. Draw any convenient line FG; join AF and AG. Drawany line HK parallel to FG. At H draw the line HL parallel B H F…
