Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 491

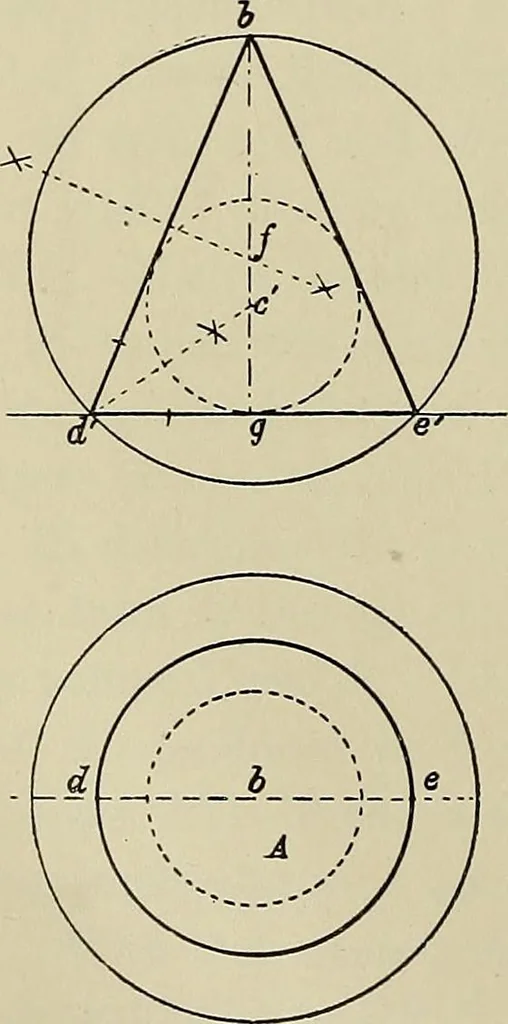

d an octahedron in a cube, etc. All these solids can likewisecircumscribe a sphere, when theirsurfaces are tangential to the surfaceof the inscribed sphere. Problem 217. ■* 1. To inscribe a given cone in a sphere. 2. To inscribe a spJiere in a given cone.Pig. 267. Let A and A be the projectionsof… … CHAP, XXXIV INSCRIBED SOLIDS 471 draw another circle of the same radius. These are the pro-jections of the circumscribed sphere required. 2. Bisect the angle Vde by a line cutting the axis in c.With c as centre, and radius eg, draw a circle. With & ascentre, draw a similar circle. These are the…
