Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 50

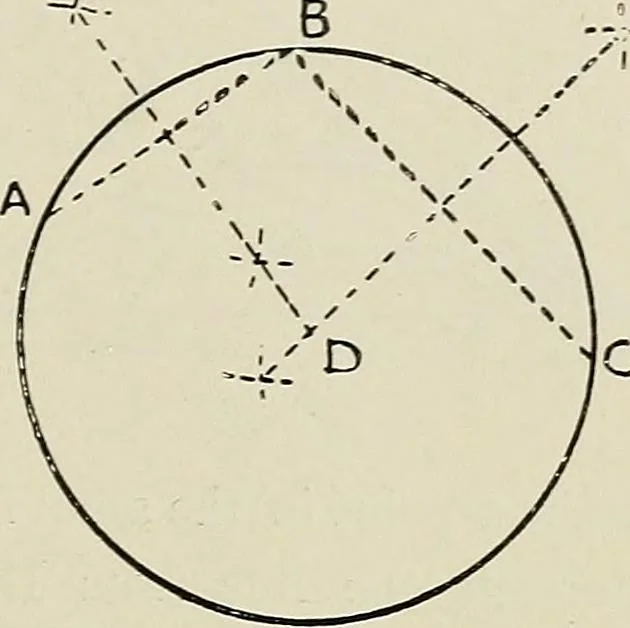

Fig. 68. which will be a diameter of the circle. Bisect DE in C,which will be the centre of the circle. CONVERGENT LINES ; CIRCLES AND ARCS 29 … Fig. 69. Peoble:\[ 34.To drav: a circle throvgh three given 2)oints A, B, C. Join AB and BC. Bisect ,AB and BC by perpendicularscutting each other at D, whichwill be the centre of the circle.From D as centre, and DA asradius, describe a circle, whichwill then pass through the givenpoints A, B, C,…
Geometrical drawing
