Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 51

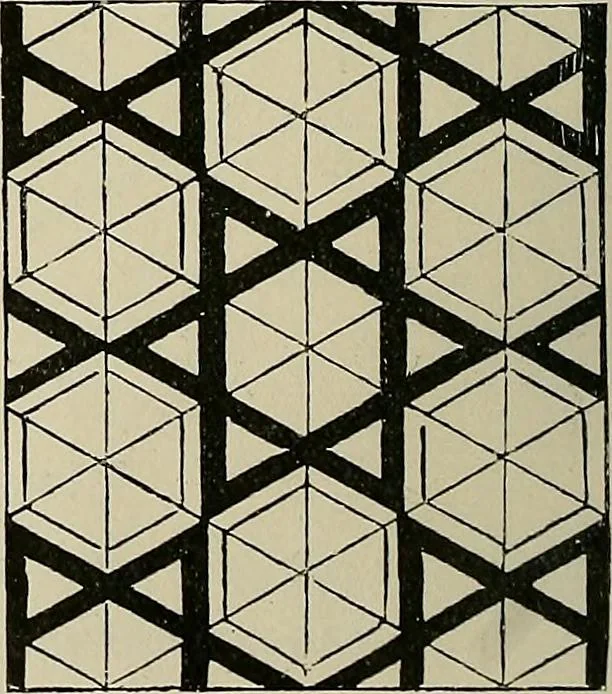

which with a fair curve, weget the required arc. GEOMETRICAL PATTERN DRAWING. These designs are based on the equilateral triangle andsquare ; they should be copied to a much larger scale thanshown. Eigs. 72, 73, 74, and 75, are drawn with the 60° set-square,worked against the edge of the… … Fisr. 72. Fig. 73. GEOMETRICAL PATTERN DRAWING 31
Geometrical drawing
