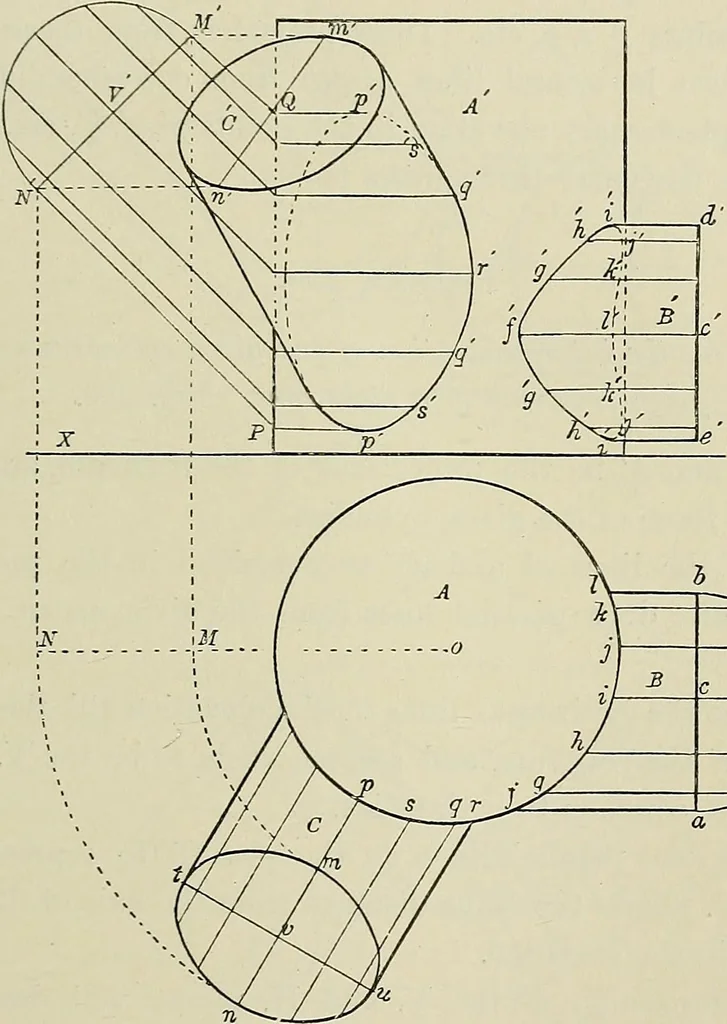

e cylinder A in the points /, g, h, etc. Bisect ed of B in c. Set off from c divisions equal to thoseon ah, and draw horizontal lines till they meet projectors drawnfrom the points /, g, h, etc., in the points /, g, h, etc. Draw a INTERPENETRATION OF SOLIDS 491 fair curve through these points for… … A 5 y\ \ A ^ \ J j ,,/ y .1^ ^__^ Fig. 279. meet a line drawn from 0 parallel to the V.P. in IST and M.Draw projectors from N and M till they meet horizontal linesdrawn from n and m in the points W and M. Join NM.Draw MQ and NT perpendicular to NM. This is a supple-mentary side elevation of the…
