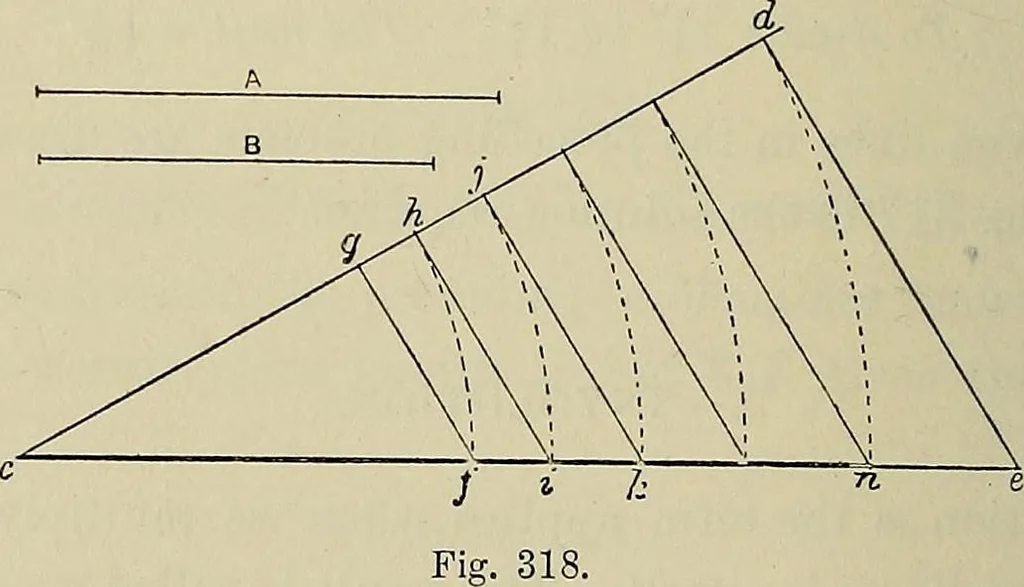

ceding it. 53^ SOLID GEOMETRY Peoblem 263. Determine the square, ciibe, fourth, fifth, and sixth jJoiuerof a given line A. B = unit. Fig. 318. Draw from c the lines cd and ce at any angle.cf=A; crj = B. Join/^r. With c as centre, and radius cf draw an arc till it meets cdin h. Draw hi parallel,to… … Peoblem 264Determine the value of l-J-^. The unit = 1. The given lines in the preceding problem (263) are inaccordance with these data, so en (Pig. 318) is the valuerequired. Note.—The two preceding problems are based on the greaterthird projjortioiial; the two following problems are based on…
