Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 66

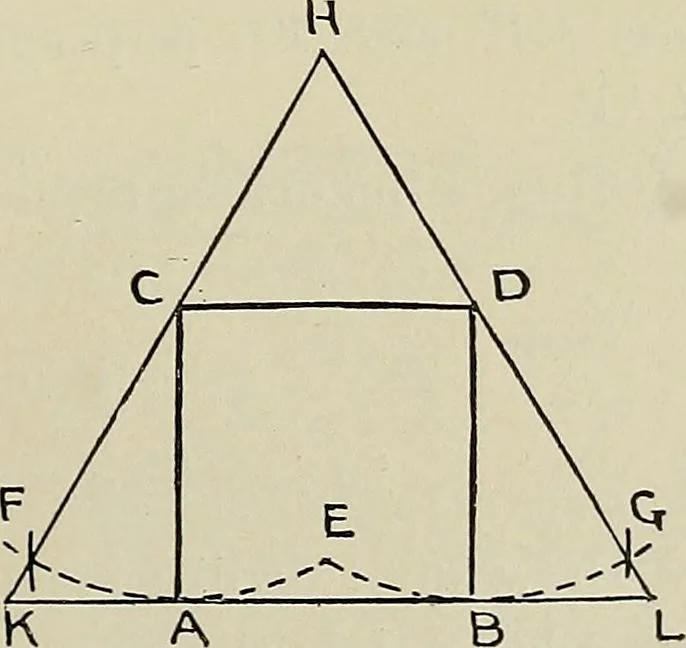

he two sides AB andAC by lines meeting in D. WithD as centre, and DA as radius, de-scribe the required circle. Peoblem 53. To describe an equilcttercd triangle ccbout a given sgimre ABCD. With C and D as centres,and with CA as radius, describearcs cutting each other at E.With E as centre, and… … Fig. 111. 46 PRACTICAL PLANE GEOMETRY Peoblem 54.
Geometrical drawing
