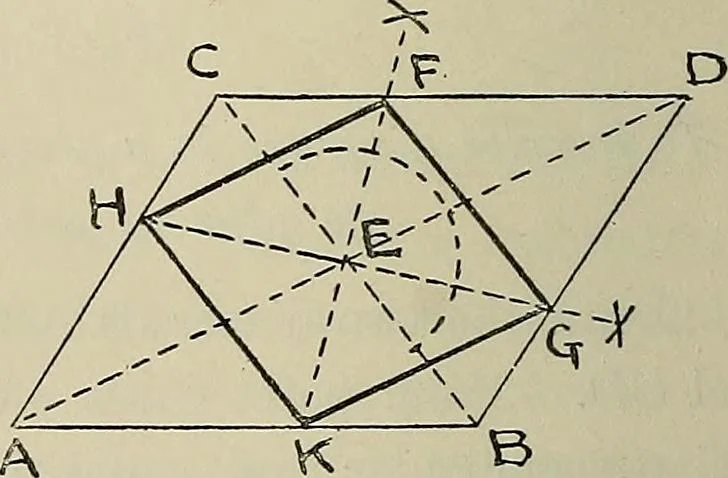

any two adjacentangles, as ADB and DBC, bylines meeting in E. From Edraw EF perpendicular to CB.With E as centre, and EF asradius, draw a circle. This willbe the inscribed circle required. Problem 6Q.To inscribe a rhombus in a given rhomboid ABCD. Draw the two diagonals AD and CB intersecting… … Ficr. 122. Pkoblem 67.To hiscribe an octagon in a given square ABCD.Draw the two diaaonals AD and CB intersecting each INSCRIBED AND DESCRIBED FIGURES other in E. With A as centre,and AE as radius, mark off thepoints E and G on the sides ofthe square. Proceed in the samemanner with the auQies B, C,…
