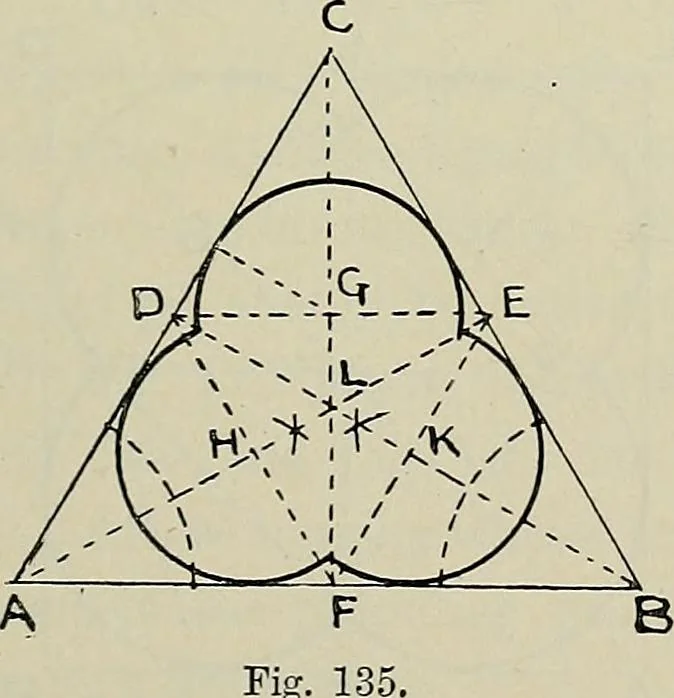

Fig. 134. Peoblem 80. THE TREFOIL. In a given equilateral triangle ABC, to inscribe a trefoil. Bisect the angles CAB and ABC by lines produced till they meet the sides of thetriangle in D and E (Prob. 13).From C, through centre L, drawthe line CF. Join DE, EF, andFD. From G draw GI perpen-dicular…
