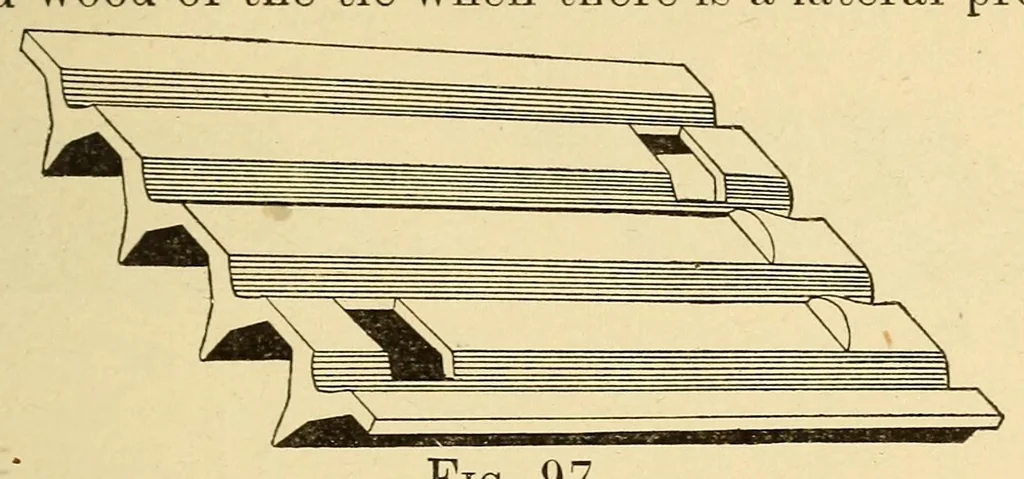

197 STANDARDS OF CONSTRUCTION. tion that their largest surface is resisted by the end wood of the tie when there is a lateral press- … Fig. 97. WOLHAUPTER TIE PLATE. With rib to resist the lateral motion of the rail. ure produced by a passing train; on the top of the plate there is placed a lug against which the outside of the base of the rail is placed. The lateral movement of the rail is resisted by the spikes as in the first…
