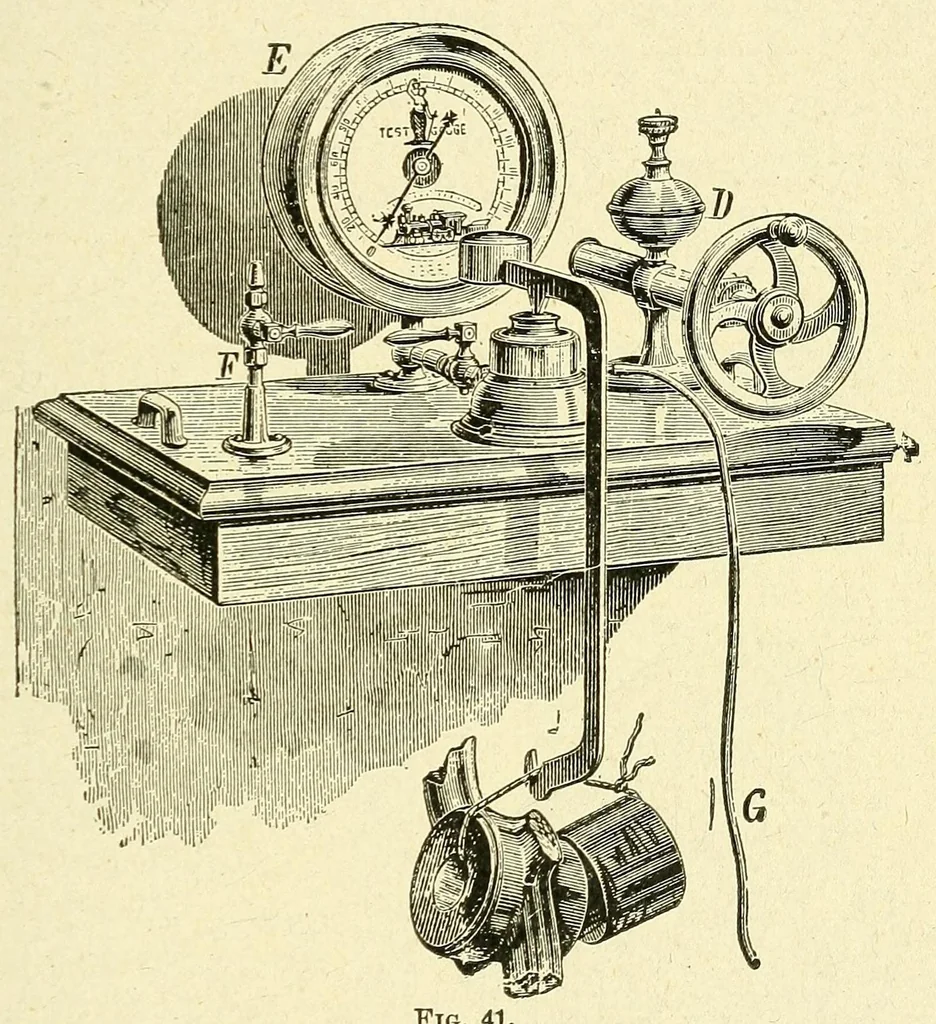

LOCOMOTIVE APPLIANCES. 117 pounds. The piston should be carefully cleaned of all oil and gum after each test. The Ashcrof t Gauge Tester is shown in Fig. 39, and its operation is very similar to that last described, except that instead of known weights being used a … Fig. 41. Utica Gauge Tester. test gauge is attached to the nipple to left of the ver- tical screw plunger, while the gauge to be tested is attached to the nipple on the right. By screwing down the screw-feed the pressure is gradually increased up to the desired limits of the reading of the gauge to…
