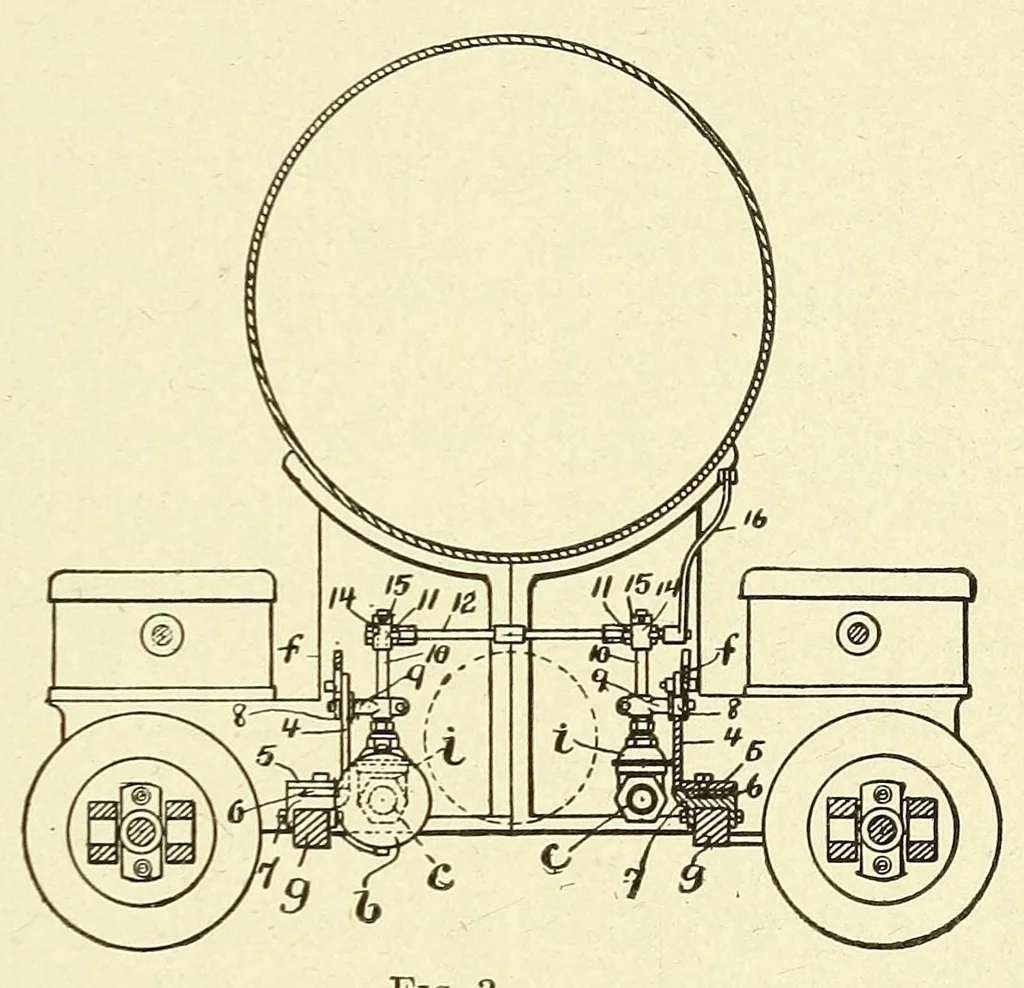

325 LOCOMOTIVE APPLIANCES. motion, imparted by connections from the lift shaft, the gate valves have their maximum opening when the reverse lever is in either extreme position, and their minimum opening when the reverse lever is in mid-gear. The several parts comprised in this mech- anism for… … Fig. 3. Huff Automatic Variable Exhaust. (Front View.) by which the gate valves may be operated from the cab independently of their control by the reverse lever when the engine is cut back. The parts of this auxiliary apparatus are shown in Fig. 3, and marked 11, 12, 13, 14, 15. It has been stated…
