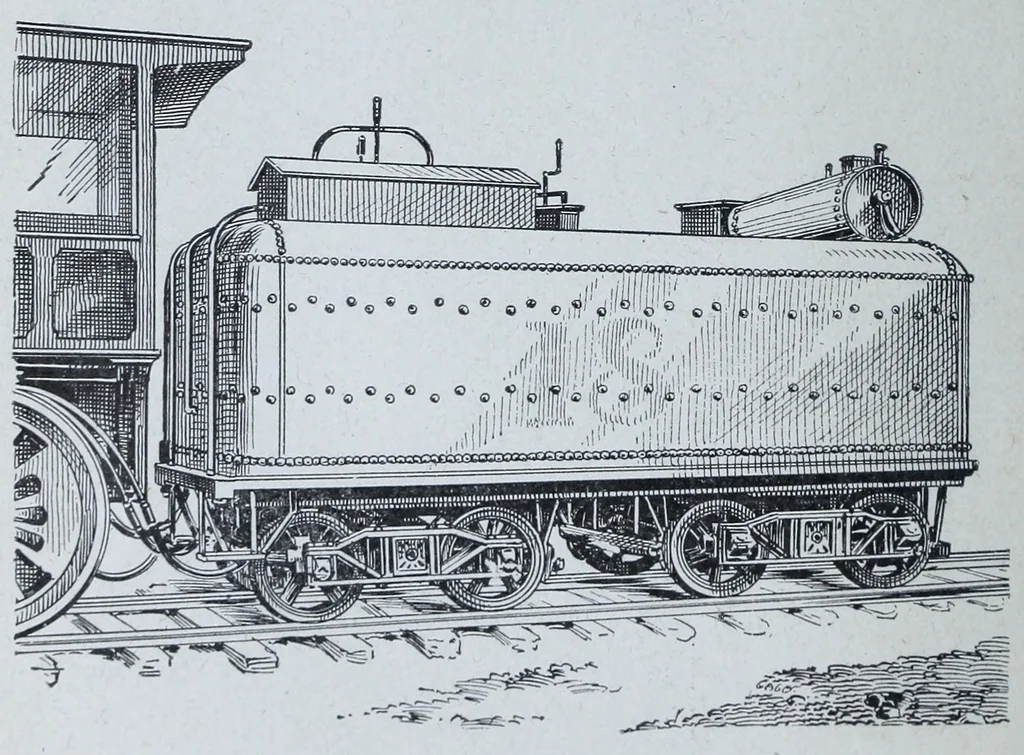

HOW OIL IS USED 16 delivery or supply tank the oil is conveyed to a tank in the tender which is generally a separate receptacle fitted in the space ordinarily used for coal. The arrangement of the tender is indicated in the following illustrations. Figure 4 shows the outside appearance of a tender… … Fig. 4. APPEARANCE OP TENDER EQUIPPED FOR OIL BURNING. Figure 5 shows the details of the tender equipment as used on the Southern Pacific Rail- way.
