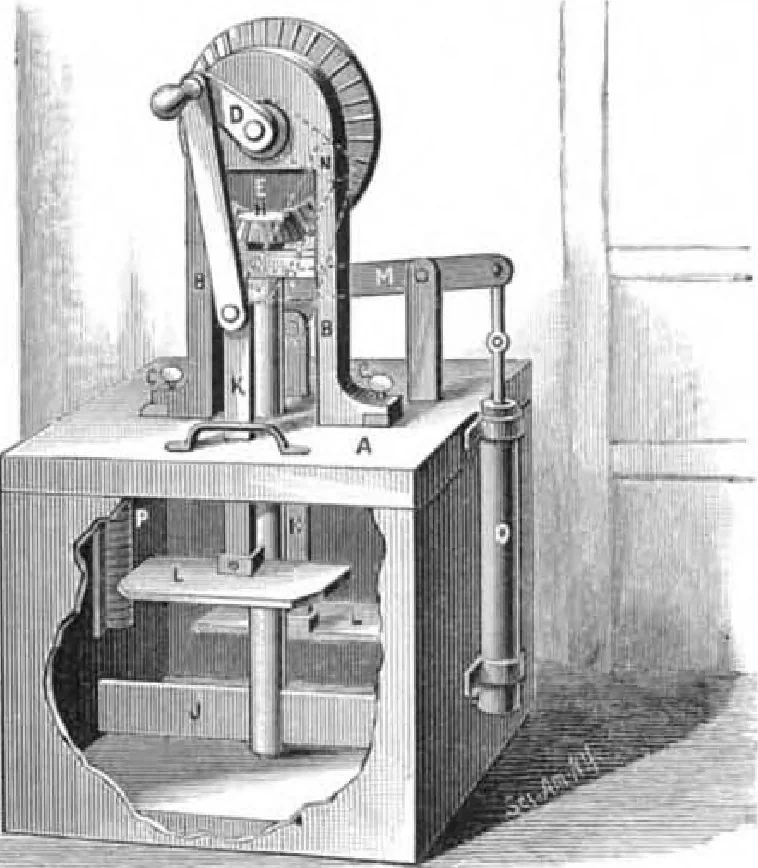

y secured by two thumb-screws, C.In the top of the standard is journaled a shaft, on one endof which is mounted a beveled wheel, E, and on the other acrank, D, furnished with a handle. The beveled wheel en-gages with a pinion, H, mounted on the upper end of a ver-tical shaft journaled in the bottom… … CLABES IMFBOVED CHUBN. rod to the crank, D, and the other is connected to awrist pin on the beveled wheel. Joined to the wrist pin is abar connected with the lever, M, to one end of which is at-tached the piston rod of the pump, O; the bottom of thecylinder of the pump communicates with the…
