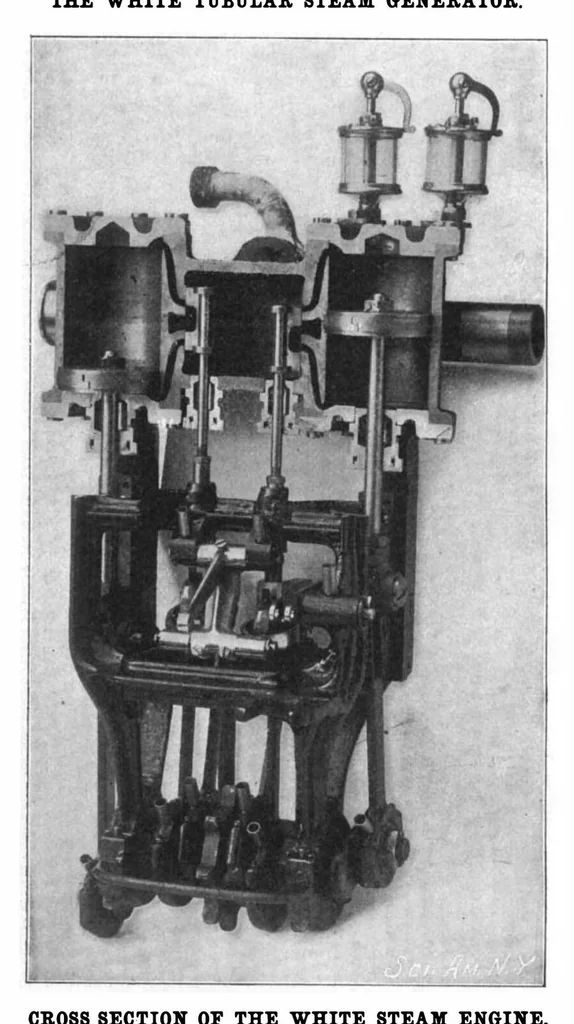

it issues through narrow transverse slits in the cir- cular coils shown in cross- section in Fig. 1. The needle valve, N, control- ling the admission of gas to the burner, can also be operated from the seat by turning the wheel of the middle spindle that pro- jects upward at the side. Shortly after… … Fig. 2, and may be de- THE MECHANISM OF THE WHITE STEAM CARRIAGE. CROSS SECTION OF THE WHITE STEAM ENGINE. scribed in but a few words. which speaks well for the work of those who planned by-pass valve connected by its triangular spindle, B, It is placed in the straight steam pipe, E, that with the…
