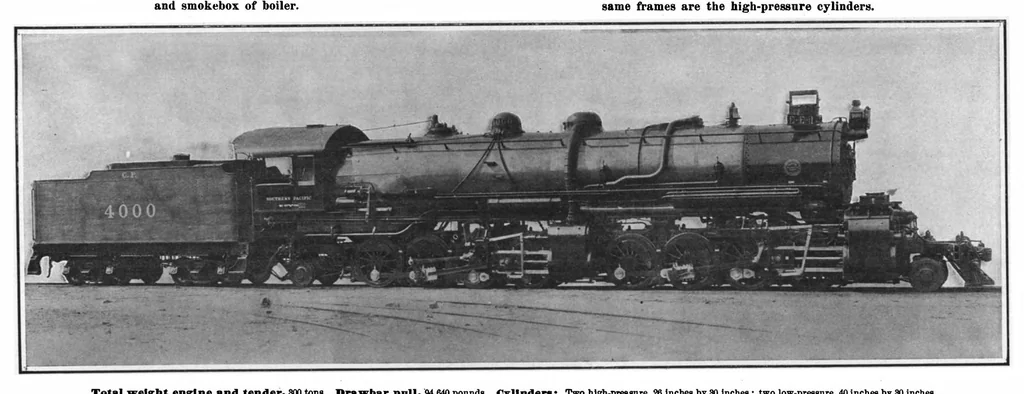

frames between the that used on heavy articulated locomotives previously 30 inches stroke; and the low-pressure cylinders, 40 high-pressure cylinders. The' weights on the two built at these works. The exhaust from the high-pres- inches diameter by 30 inches stroke. The boiler is Low-pressure engine… … Total weight engine and tender, 300 tons. Drawbar pull, 94,640 pounds, Cylinders: Two high-pressure, 26 inches by 30 inches; two low-pressnre, 40 inches by 30 inches. Diameter of boiler, 7 feet; heating surface, 6,393 square feet. THE MOST POWEBFUL LOCOMOTIVES EVEB BUILT. 84 inches diameter; the…
