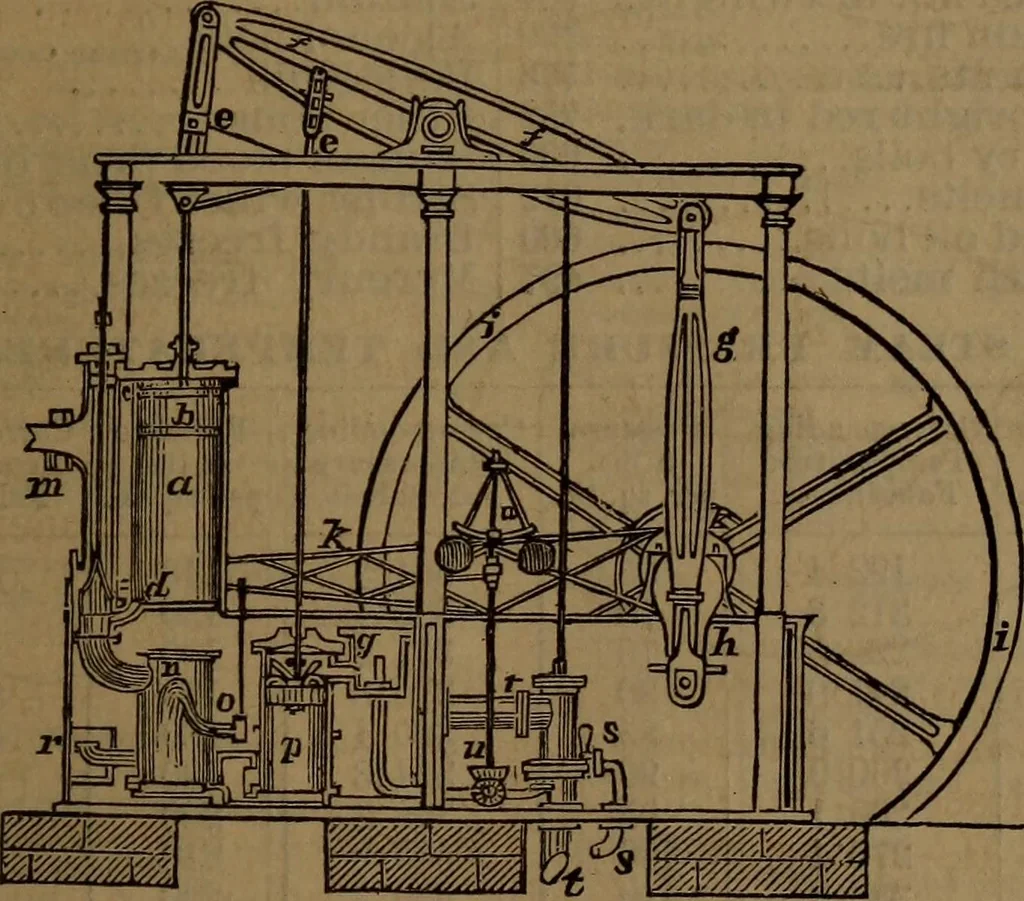

THE CONDENSING ENGINE. 185 THE STEAM-ENGIWE. Every mechanic and inventor should make himself gen-erally familiar with the construction and operation of thesteam-engine. To assist them In gaining this knowledge,we subjoin for reference a diagram of the common Con-;densing Engine, with letters of… … a, steam cylinder; 6, piston; c, upper steam port or pas-sage ; d^ lower steam port; e e^ parallel motion ; //, beam;g^ connecting rod; A, crank; i ^, fly-wheel; k k^ eccentricand its rod for working the steam-valve ; Z, steam-valve andcasing ; m, throttle-valve ; w, condenser ; o, injection-cock…
