Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 210

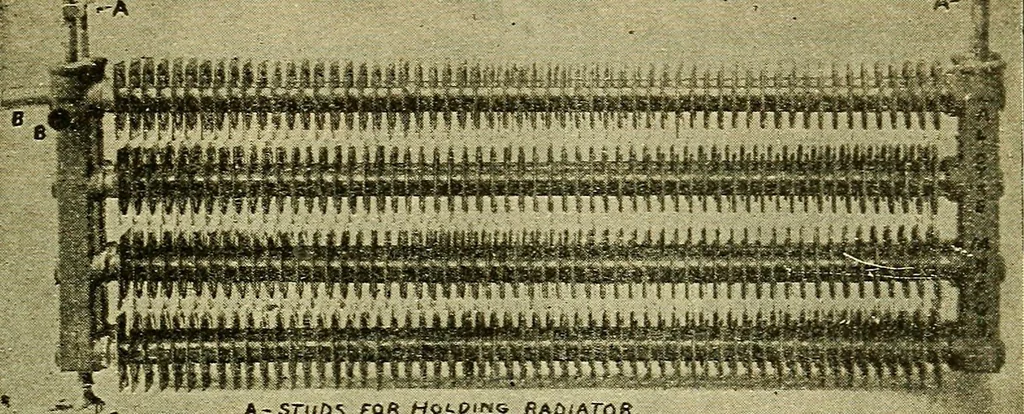

as is being advocated by some of theforemost authorities on the subject, the best practice is to supplywater to the jacket at a temperature of a few degrees below theboiling point, permitting it to be returned to the reservoir at atemperature slightly above. Some hold that even higher tem-peratures… … A-SFuDS «>« Hoi.ot«e RAOIATOR. B-CONNCCriONS FOd WATER W»TH S«ALi, fiUgggft «0$E, C- DRAIN cocKr Fig. 147.— Fin Cooled Radiating Tubes used on the Dyke Carriages, with parts and connections indicated. heat units are being absorbed by the water proves that the en-gine is doing harder work and not…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
