Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 258

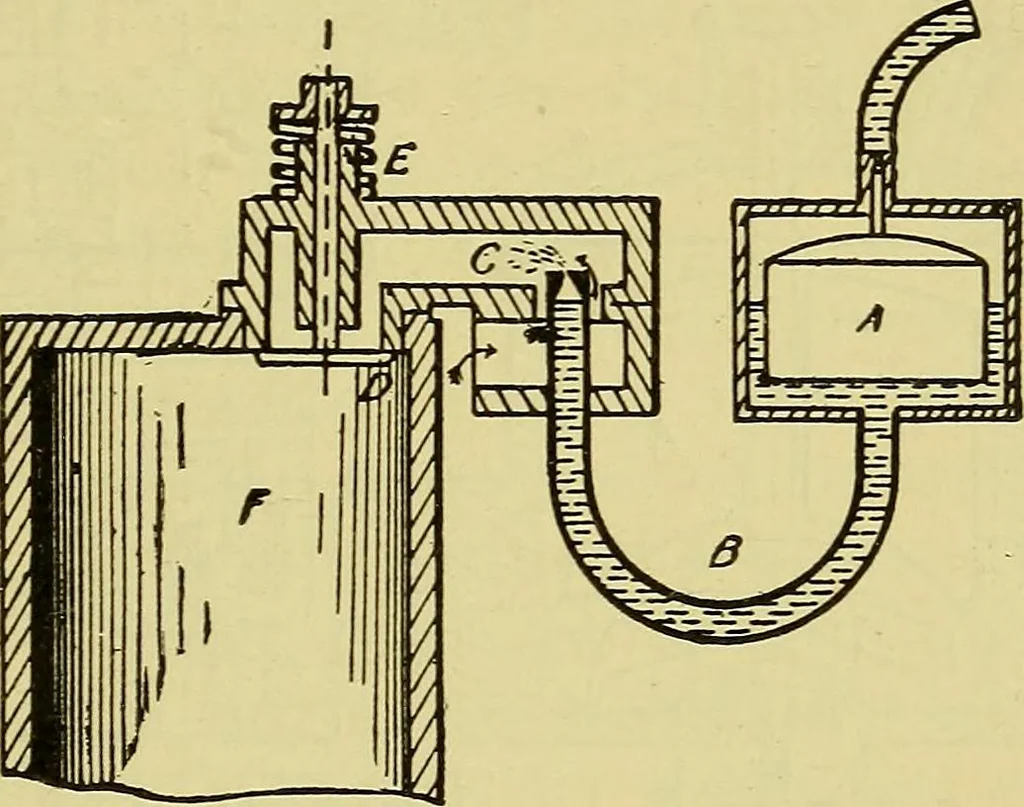

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 258 — rough the tube shown at its top. This is the simplestform of the float feed carburetter. The action is as follows:When the piston in the cylinder, F, is making its suction stroke,the valve, D, is opened inwardly, compressing the spring, £,carried on its stem, and giving admission to atmospheric… … Fig. 167.—May bachs Original Float Feed Carburetter. A is the hollow float carryingthe spindle of the needle valve at its top; B, the tube leading into the inlet valvespace; C, the spraying nozzle; D, the inlet valve; E, the inlet valve spring; F, thecylinder space. up by suction and mixes with the…

Automobiles
