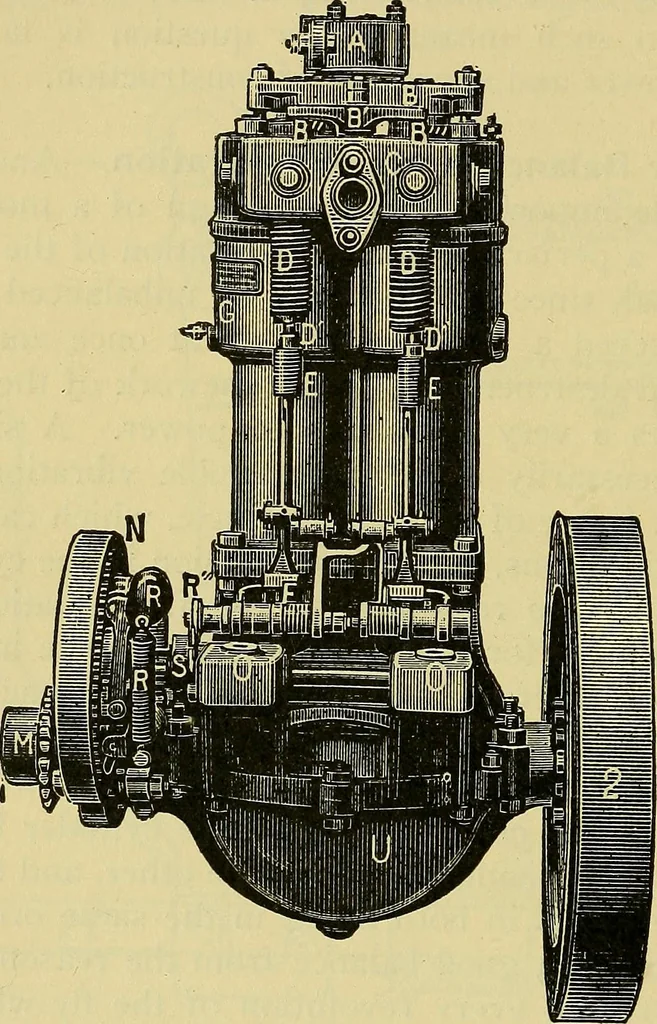

ation should be thus best attained. How-ever, in the later Panhard vehicles using double cylinder motorsboth piston rods work on a single crank pin, so that both pistons 306 SBLF-PROPBUBD VEHICLES. make in-strokes and out-strokes at the same time, as in the oldV-shaped model. This is the plan now… … Fig. 226.—The Phenix-Daimler Double-vertical-cylinder Six-horse-powerMotor, as used by Panhard-Levassor. A is the port for admitting fuelgas under piston suction; B, the inlet valve; B, the exhaust valve; C,the ignition apparatus; D, spring on the exhaust valve; LV, exhaustvalve rod; E, pushrod…
