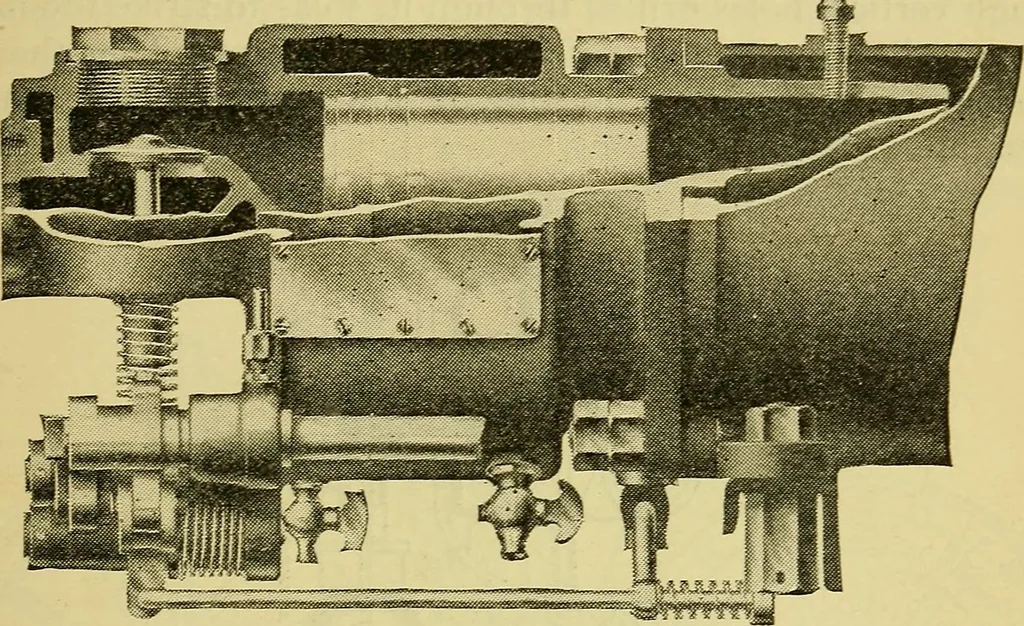

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 356 — to a minimum.The transmission gear is carried direct upon one end of the main- GASOLINE MOTOR DEVELOPMENT. 343 shaft, just outside the flywheel, the other extremity carrying thecirculating water pump, starting ratchet and spiral gear—this lat-ter for actuating the cam shaft. This extends… … Fig. 257.—Part Sectional View of the Olds Motor, showing valve-operatingmechanism.
