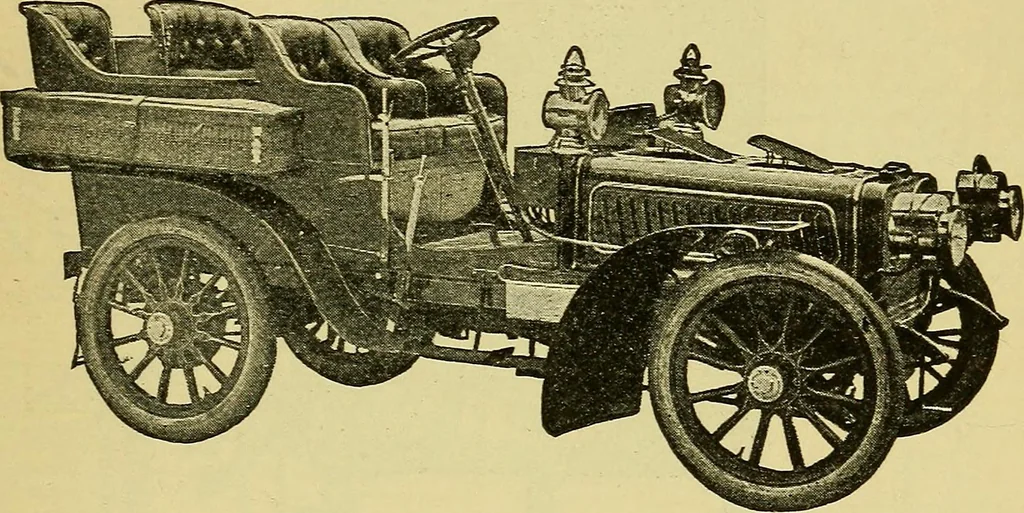

solid angle-steel, to which the front and rear axles are hung bysprings. The drive is by bevel gear to the differential drum,and the two portions of the divided rear axle turn in sleeves,which are solidly bolted to the differential case and supported bystruts at either side. The construction of the… … Fig. 272.—Decauville Four-cylinaer Car, with Plain Tonneau Body. volves the further advantage of providing a perfectly rigid con-nection between motor and transmission when the clutch is on. The Motor and Sparking Apparatus.—The 1904 models ofDecauville cars include one two-cylinder, 4.29x4.29…
