Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 388

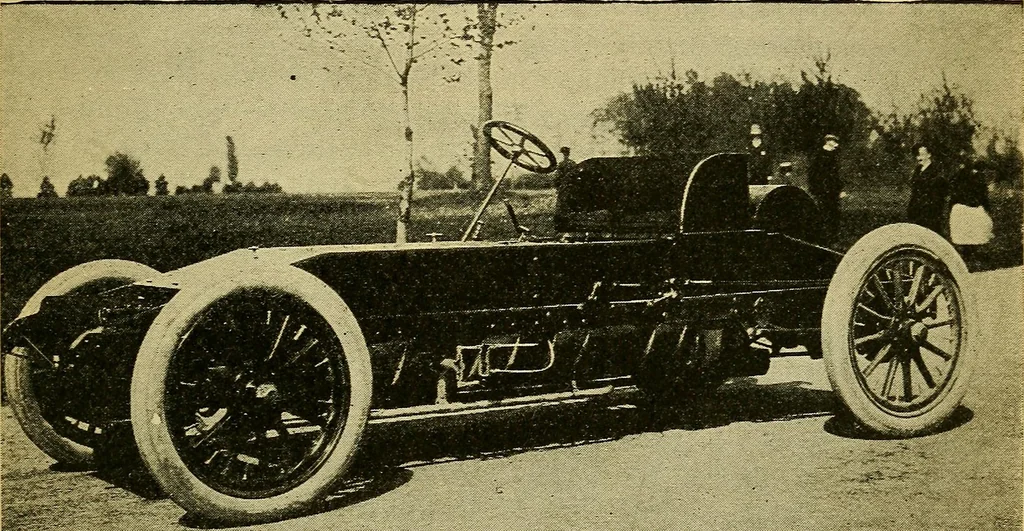

rmediate idler gear, P, to the counter-shaft, and thus, through L and D, to sprocket C. The operation of this gear involves the use of two levers—onefor throwing clutch, G, and operating the band brake on drum, R,the other for throwing clutches, H and M. The Winton Racer.—The name of Winton is… … i_ i ■-• • -■-, . iiti Big. 285—The Winton Racing Car, Bullet, No. 2. der motor placed transversely in the frame, and consisting of twounits of four cylinders each, connected by means of a universalflexible joint. In size and mehanism each cylinder is a duplicateof the Winton Touring Car motor…
Automobiles
