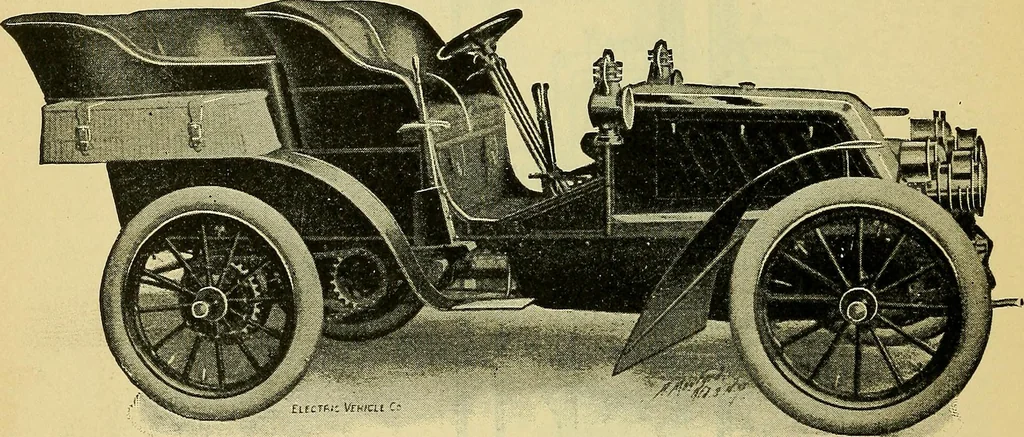

driving wheels are the bevel gears, C. This isaccomplished by sliding the gear set, DD, to the left until itsmiter teeth, O, are in mesh with those on hub, H. This move-ment also pushes gear, B, to the left sufficiently to disengagemiter gears on its hub from those on H, thus releasing the… … Fig. 304.—Columbia Four-cylinder Tonneau Carriage. Further reference to the drawing of the transmission will showthat ball bearings are used extensively, the bearings being unusu-ally long, while every opportunity for close adjustment is afford-ed by the construction. The Columbia Carriages.—Among…
