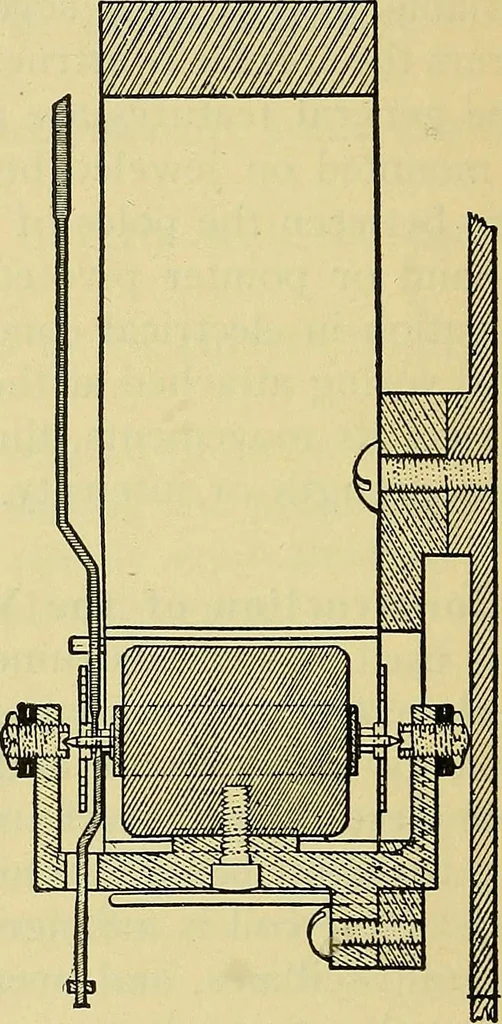

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 445 — Fig. 328. Fig. 329. Figs. 328 and 329.—Sectional Diagrams Illustrating the Construction of Voltand Ammeters. The iron core is secured to the base plate by a screw.The active coil is shown wound around it from end to end. the diagrams, at the opposite end of the wire. The whole in-strument is…
