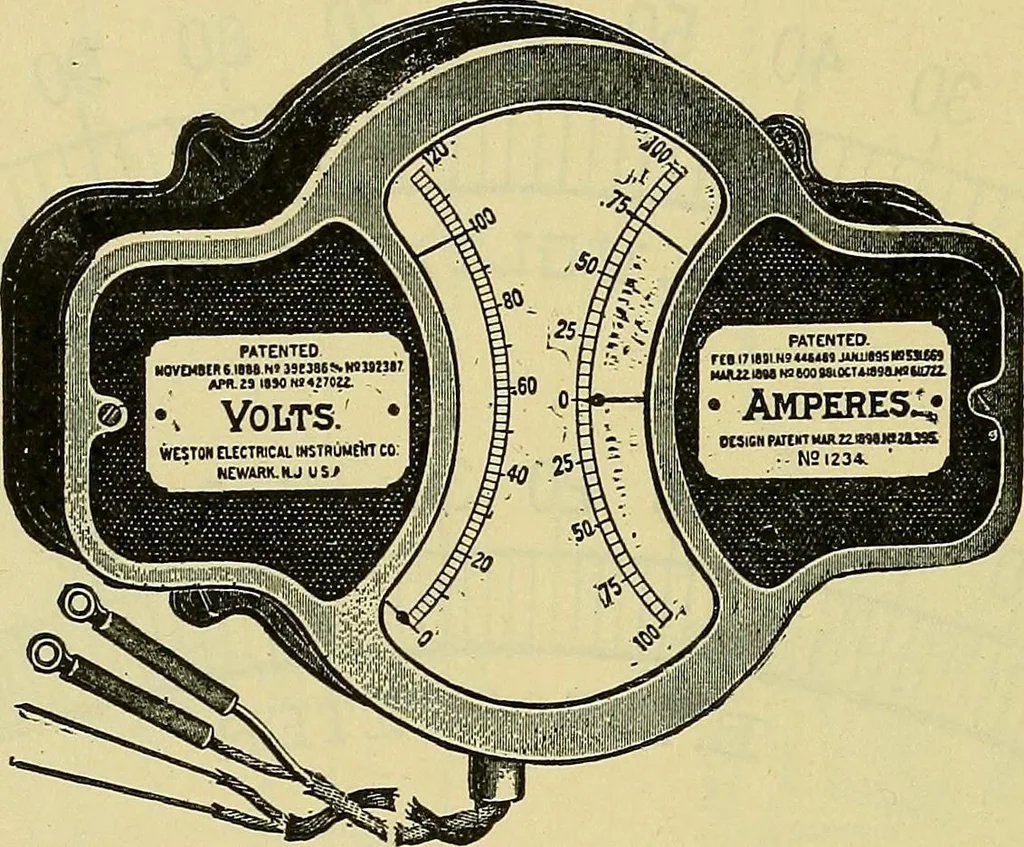

is to be done in shorter time than normal the am-perage may be periodically adjusted to suit directions. The bat-tery having a normal charged capacity of two volts per cell, isseldom charged above 2.6 volts, on the average, and never dis-charged below 1.75 volts per cell. Consequently, since the… … Fig. 331.—Weston Volt-ammeter of the Type used on Electric Vehicles.Other makes of these instruments have the index scales side by side,instead of end to end. indicates the voltage of the couple in circuit, whether the batteryunit be connected in multiple, series-multiple, or series; showingfor a…
