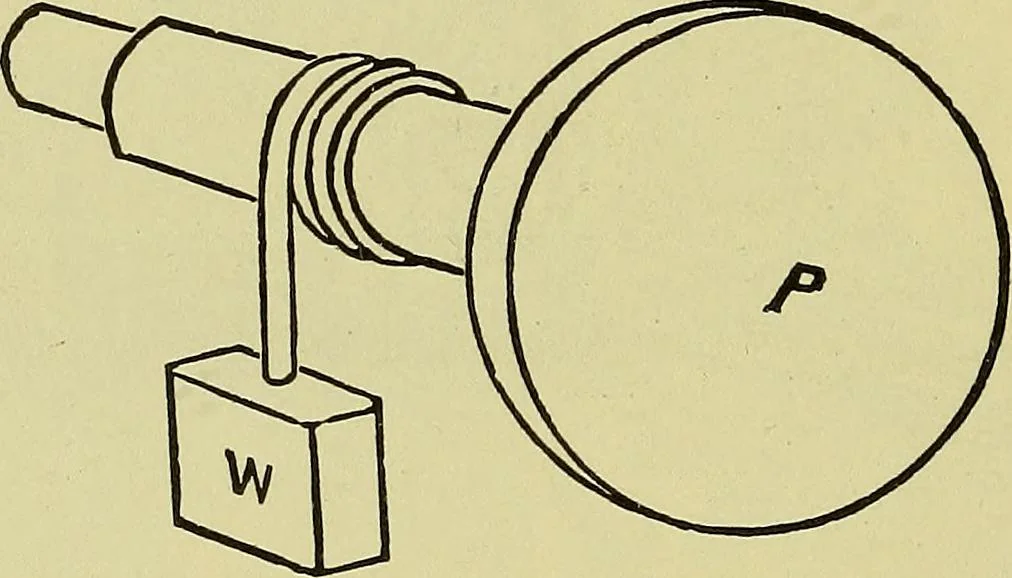

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 465 — e balanced by a weight of twenty-five pounds, and so onindefinitely; the amount of weight necessary to balance weight,W, being always in inverse proportion to the difference in diam-eter between the shaft on which it is coiled and the pulley, towhich is attached the rope carrying the… … Fig. 343.—Diagram Illustrating the Theory of Torque. latter weight is attached. Consequently, if the torque at theshaft of a motor armature is equivalent to ioo pounds for thatdiameter, it can exert a power of only fifty pounds with a pulleyof twice the diameter of the spindle, and of only…
