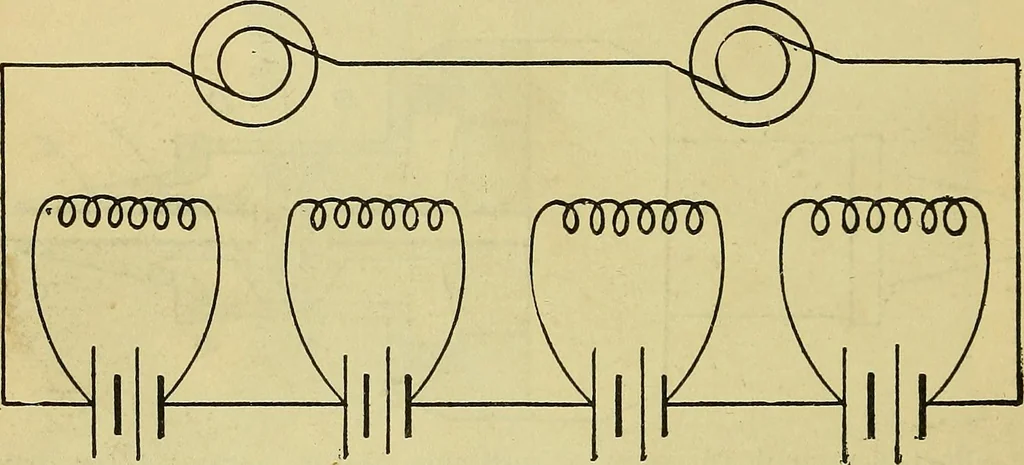

on of the cells.The field coils may be divided into as many sections as batteries,and each battery given a section. This arrangement will not in-terfere with the batteries being switched in any series or multiplecombination that may be desired. In the annexed figure twomotors are shown in diagram,… … Fig. 354.—Diagram of Circuit Arrangements with Shunt Motors, as ex-plained in text. series field coil, has evidently been put into operation by one ortwo manufacturers. Of course, with uniformly-wound shuntand series coil, both fields are greatly excited at high load, and,the magneto-motive force…
