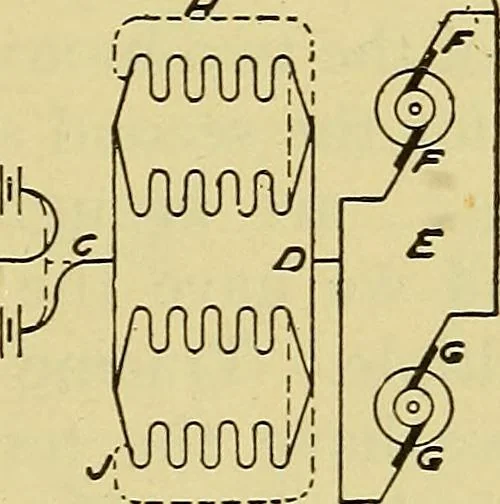

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 498 — , «. s* lllllllllllhllllllllli Q … JS* SPEED Fig. 360.-—Diagram of the Circuit-Changing Arrangements of a Typical ElectricalVehicle. The full lines in these plans indicate the closed, or active, circuits; thedotted lines the open, or inactive, circuits. As may be readily understood, the wholescheme of circuit-changing depends on…
