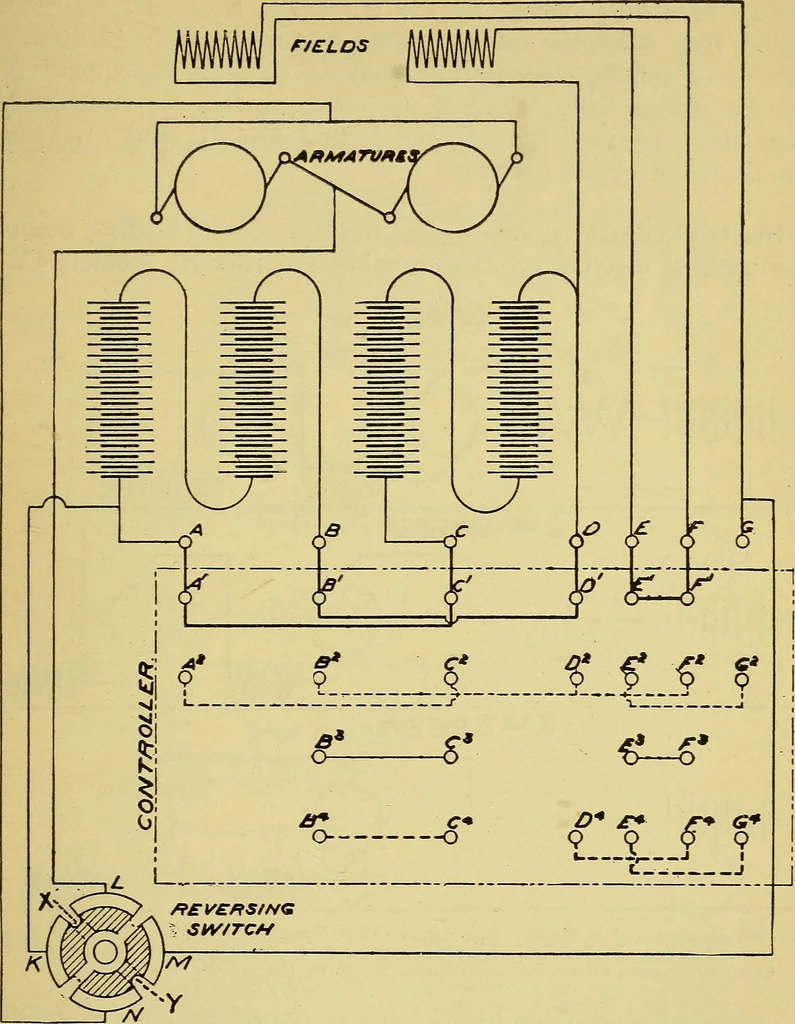

nnected in series and the fieldsin series. Similarly, by tracing the connections for the fourthspeed, we find the terminal points, B and C, connected to ter-minal points, B* and C4, and the terminal points, D, E, F, G, inelectrical connection with the terminal points, D*, E*, F*, G\which means that… … Fig 361 —Diagram Plan of the Several Parts of an Electrical Vehicle Driving Circuit.The field-windings and armatures are shown projected, the proper wiring connec-tions being indicated. The periphery of the controller is laid out within the brokenline rectangle, the contacts and connections through…
