Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 507

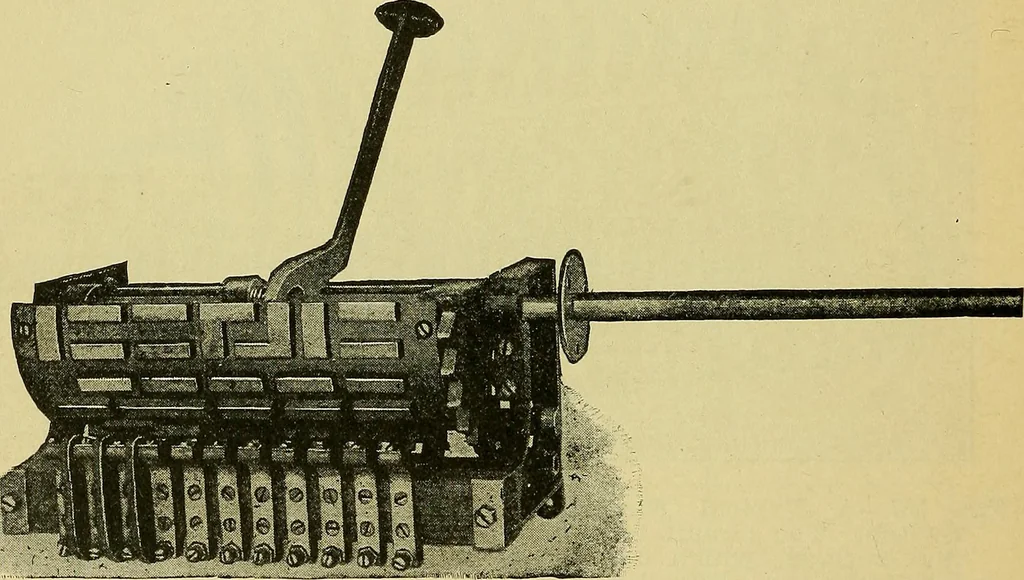

s in the circuit through a wide range of variation. Asshown in the figure of the arrangement of the battery and con-trollers in a typical electric vehicle, these points are disposedso that the units of the battery may be connected in series ormultiple, and that the field windings of the motors may… … Fig. 368.—Typical Controller of the General Electric Co., showing means formaking circuit connections through conducting segments on the per-iphery of the controller-cylinder. for the first speed, in which the batteries are connected in multi-ple, the points, A, C, are in electrical connection, as…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
