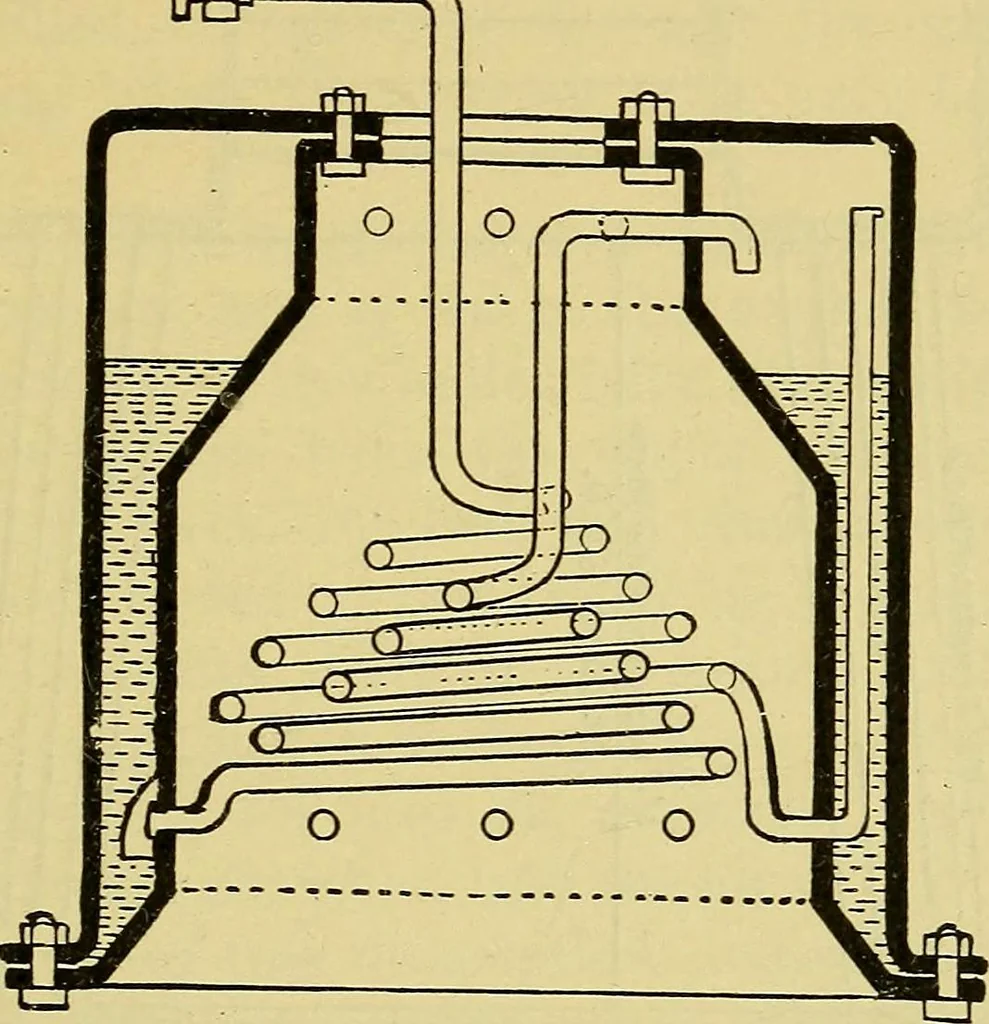

of thechamber. The attachments of all the coils, both at the top andat the bottom, being on horizontal planes, perfect circulation ismade possible from the lowest point of heat contact upward.Because of the excellent character of these circulation guides,dry steam is fed to the engine, without… … Fig. 407.—Sectional Elevation of the Morgan Boiler, formerly used on theToledo Carriage. The disposition of the coils may be understood fromthese cuts, also the steam connections through the superheating coil.The sectional view shows the steam superheating and one of the gener-ating coils in…
