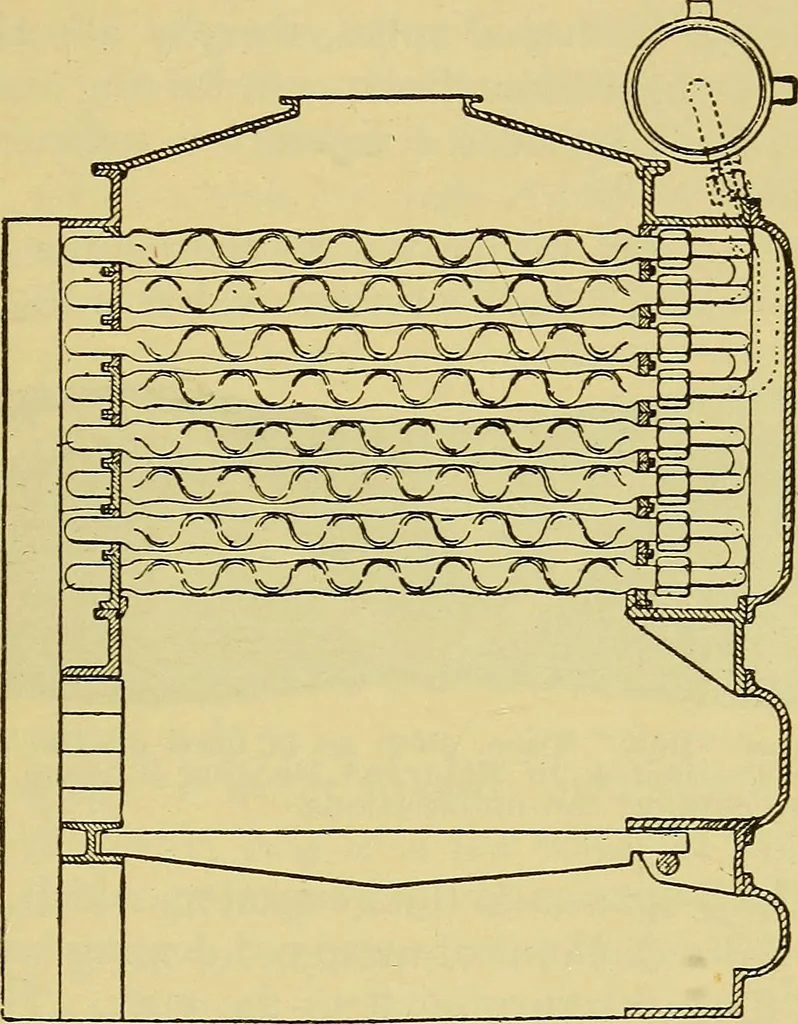

number of tiers of bent tubing connected in series with theform of connector, known as the Hay thorn joint, very much afterthe manner of Serpollets later generators. Unlike Serpolletstubes, however, the portions here exposed to heat are not flat-tened or twisted, but indented, as shown in an… … Fig. 419.—Sectional Elevation of one Form of the Simpson-Bodman FlashGenerator and Casing-, showing the steam drum at the right top of thecasing, through which the feed water is pumped to tne indented Rowtubes, bent double, arranged zigzag and nested, like tne tunes of theSerpollet generator shown…
