Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 591

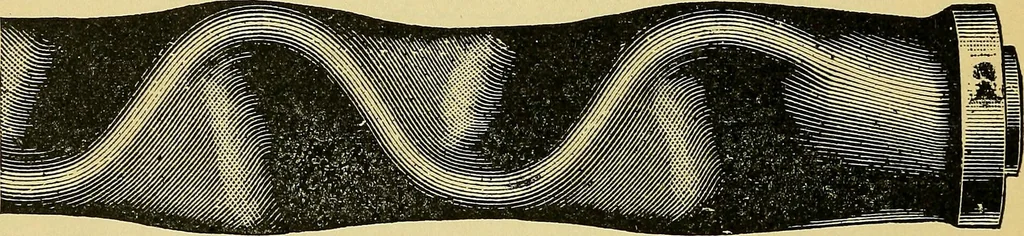

on is the steam drum, which is an elongatedcylinder containing one or two U-shaped tubes. The steam islet into this drum, and the feed water on its way to the top coil,passes through the U-shaped tubes, thereby absorbing a goodlyproportion of the superfluous heat. On leaving the drum, there-fore,… … Fig. 420.—Length of Row Tube, such as is used on the Simpson-BodmanGenerator for Producing- an Enlarged Heating Surface. This cut showsthe manner of making the indentations. pipe between the by-pass and the generator, which, it is said, fur-nishes a much more economical means of dealing with…
