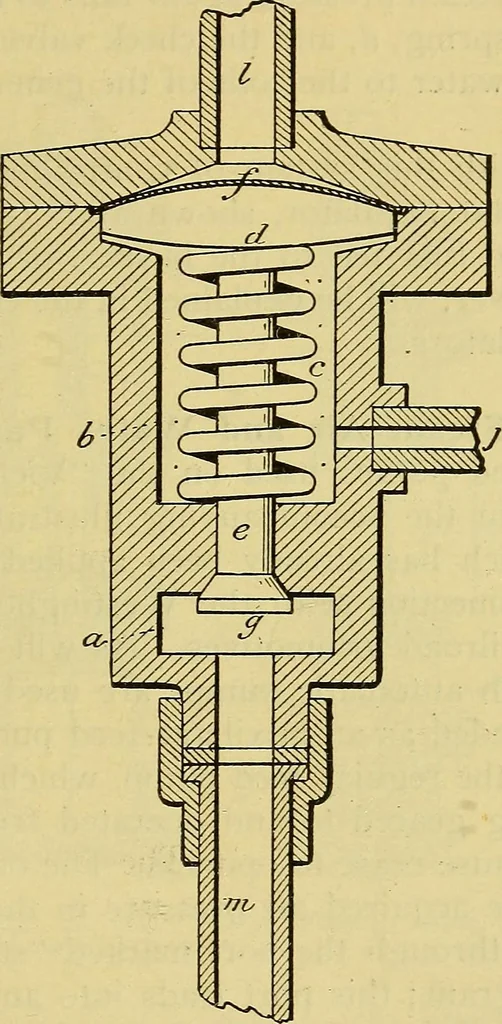

point, when the by-pass valve isopened, the pipes, P and /, are not in communication so long as BOILER FEEDERS. 593 the pump, A, operates to feed water to the coils of the gener-ator, G. The regulator, K, is constructed and operated as shown in anaccompanying diagram. It consists of two chambers, a… … Fig. 436.—Section of the Automatic Boiler Feed Regulator of the WhiteSteam Carriage. against the metal diaphragm, f, held between the casing of a andb and the cap, g. The operation is obvious. The port, I, shownjust above the diaphragm, f, is connected direct to the generatorby the pipe, L. When,…
