Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 617

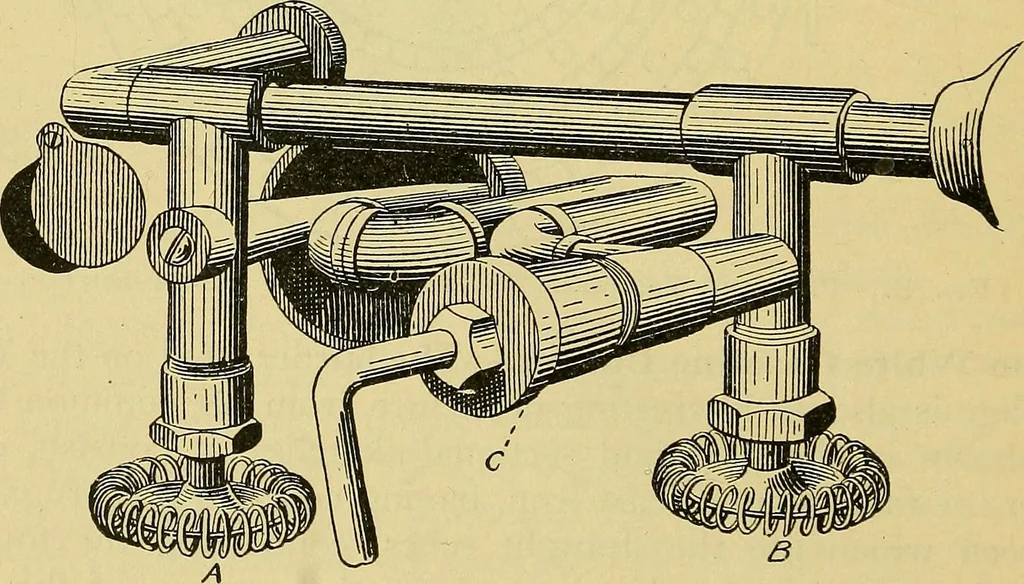

Z^> D §£d> Fig. 443. —Usual pattern of torch head and starting torch, used on several Americansteam carriages. The head parts are lettered as follows: A, body of head; B, threadedcap; C and D, nuts working on screws, F and G, on rod, E. Screw, G, gives attach-ment to the collar on the valve… … Fig. 444.—Showing the torch in position. By reference to Fig. 217, it may be readily un-derstood that the head of the torch, C, is attached to a nipple on B by screw, G; thebent tube being thrust through a port in the burner casing so as to come directly overthe fire; the nozzle entering the mixing…
