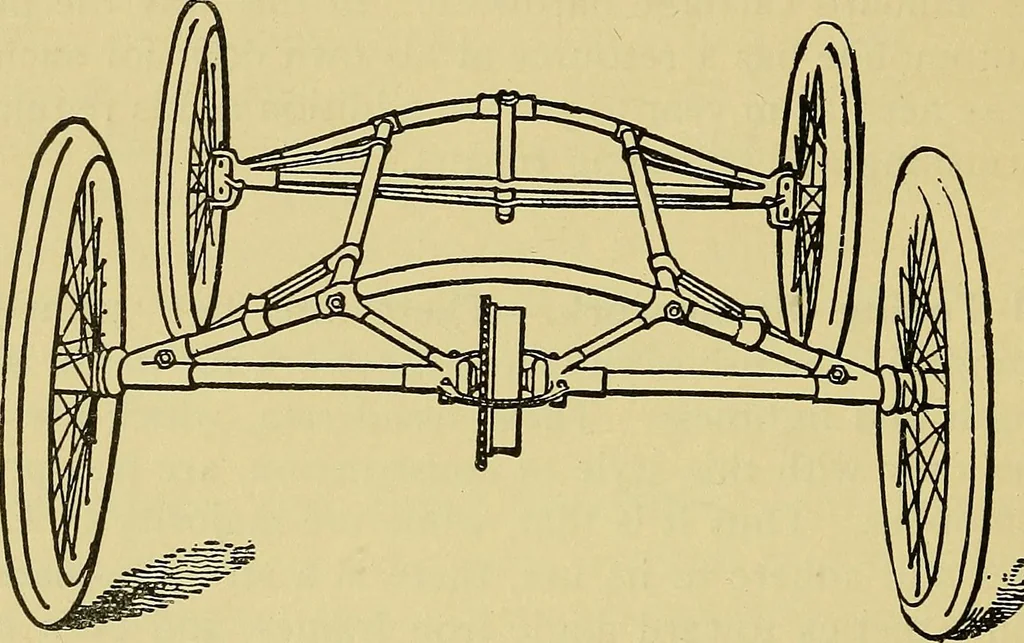

ame ends. The Stanley Tubing Underframe The Stanley underframe, used in the Locomobile and several other steam carriages isone of the most representative constructions of its class. Asshown in the accompanying figure, the front and rear axle shaftsare inserted into straight cross tubes, which are… … Pig. 61.—The Stanley Type of Underframe used on the Locomobile and several other Carriages. shown, and further secured in place by stay pieces swiveled atthe four corners of the frame and ring—jointed loosely on thereach tubes. This construction permits some flexibility on roughroads. The rear…
